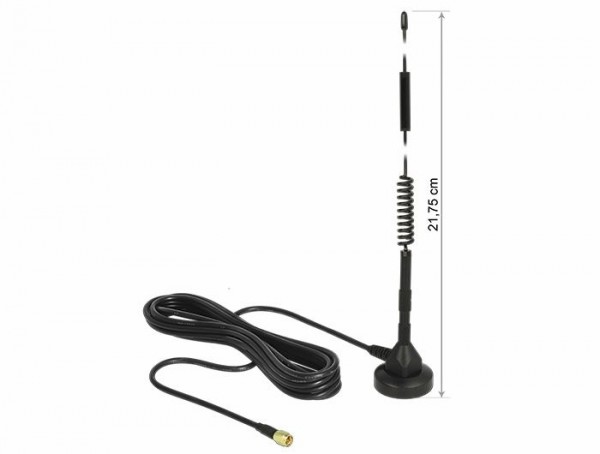

ALLNET GSM antenna 5dbi magnetic omnidirectional antenna

product pictures similar, may differ from the product description!
Due to the holiday "Tag der deutschen Einheit" your order will not be dispatched until the next working day.
- stock: 0
- part no.: 136774
- vendor: ALLNET
- mnufacturer no.: ALL19102
- EAN No.: 4038816136770
- weight: 0.105kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads





- GSM UMTS LTE antenna external rigid
- Frequency range: 700 ~ 790 / 824 ~ 960 MHz / 1.710 ~... more
Product information "ALLNET GSM antenna 5dbi magnetic omnidirectional antenna"
- - GSM UMTS LTE antenna external rigid
- - Frequency range: 700 ~ 790 / 824 ~ 960 MHz / 1.710 ~ 2.170 GHz /
- 2.400 ~ 2.500 / 2.600 ~ 2.690 GHz
- - VSWR: < 2.5
- - Transmit power: 10W
- - Magnetic base, diameter: 40mm
- - Thread base: M5 (standard)*approx. 7.5 mm
- - Antenna length incl. base: 337 mm
- - Antenna cable length: 3.00 m
- - Antenna cable type: RG58/U, 50 Ohm
- - SMA plug (gold)
