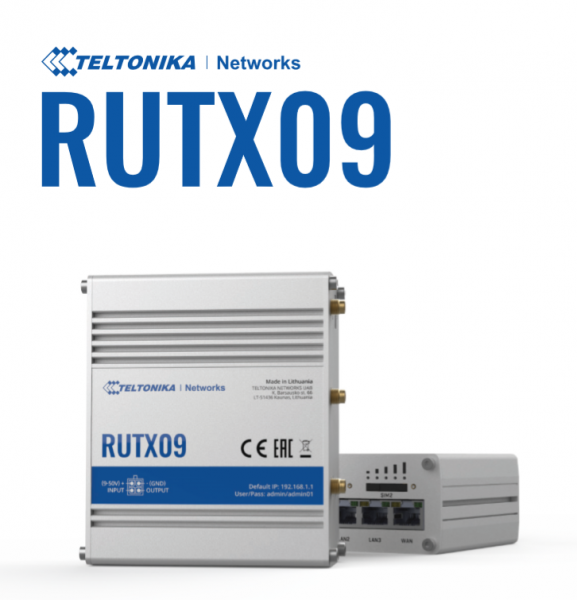

Teltonika RUTX09 Industrial LTE Modem Router Cat6 "ONLY LAN"
- stock: 0
- part no.: 165162
- vendor: Teltonika
- mnufacturer no.: RUTX09000000
- EAN No.: 4779027312460
- weight: 0.455kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet EN EU RoHS und REACH ErklärungThis powerful LTE router is designed as a Main/Backup Internet source where steady connection and high data throughput is required. Equipped with Dual-SIM and 4 x Gigabit Ethernet ports. RUTX09 has all advanced RutOS software and security features.
Technical Details:
MOBILE | |
Mobile module | 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps |
SIM switch | 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
Status | Signal strength, SINR, RSRP, RSRQ, Bytes sent/received |
Bridge | Direct connection (bridge) between mobile ISP and device on LAN |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
Black/White list | Operator black/white list |
Multiple PDN | Possibility to use different PDNs for multiple network access and services |
Band management | Band lock, Used band status display |
ETHERNET | |
WAN | 1 x WAN (can be configured to LAN) 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
LAN | 3 x LAN ports, 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
NETWORK | |
Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) |
Network protocols | TCP, UDP, IPv4, IPv6, ICMP, UDP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT |
VoIP passthrough support | H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
Connection monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
Firewall | Port forward, traffic rules, custom rules |
DHCP | Static and dynamic IP allocation, DHCP Relayd |
QoS | Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
DDNS | Supported >25 service providers, others can be configured manually |
Network backup | VRRP, Mobile and Wired WAN options, each of which can be used as backup, using automatic Failover |
Load balancing | Balance your internet traffic over multiple WAN connections |
NetSnapper (optional) | Mobile connection management, data compression VPN client (not available in standard FW) |
SSHFS (optional) | Possibility to mount remote file system via SSH protocol (not available in standard FW) |
SECURITY | |
Authetication | Pre-shared key, digital certificates, X.509 certificates |
Firewall | Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
Atack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
VLAN | Port based and tag based VLAN separation |
Mobile quota control | Set up custom data limits for both SIM cards |
WEB filter | Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
VPN | |
OpenVPN | Multiple clients and server can be running simultaneously, 12 encryption methods |
OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
IPsec | IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
GRE | GRE tunnel |
PPTP, L2TP | Client/Server services can run simultaneously |
Stunnel | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code. |
MONITORING & MANAGEMENT | |
WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log |
FOTA | Firmware update from server, automatic notification. |
SSH | SSH (v1, v2) |
SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems |
MQTT | MQTT Broker, MQTT publisher |
SNMP | SNMP (v1, v2, v3), SNMP trap |
JSON-RPC | Management API over HTTP/HTTPS |
MODBUS | MODBUS TCP status/control |
RMS | Teltonika Remote Management System (RMS) |
SYSTEM CHARACTERISTICS | |
CPU | Quad-core ARM Cortex A7, 717MHz |
RAM | 256MB, DDR2 |
FLASH memory | 256MB SPI Flash |
FIRMWARE / CONFIGURATION | |
WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
FOTA | Update FW/configuration from server |
RMS | Update FW/configuration for multiple devices |
Keep settings | Update FW without losing current configuration |
FIRMWARE CUSTOMIZATION | |
Operating system | RutOS (OpenWrt based Linux OS) |
Supported languages | Busybox shell, Lua, C, C++ |
Development tools | SDK package with built environment provided |
LOCATION TRACKING | |
GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
NMEA | NMEA 0183 |
Server software | supported server software TAVL, RMS |
Mobile Network Geolocation | Location without using GPS, get approximate location based on mobile tower on RMS |
Geofencing | Configurable multiple geofence zones |
INPUT/OUTPUT | |
Input | 1 x Digital Input (Non-isolated, Logic low 0...+5V, Logic high +8...+40V) |
Output | 1 x Digital Output (open collector type, 30V@0.3A) |
Events | SMS, EMAIL, RMS |
USB | |
Data rate | USB 2.0 |
Applications | Samba share, custom scripts |
External devices | Possibility to connect external HDD, flash drive, additional modem, printer |
Storage formats | FAT, FAT32, NTFS |
POWER | |
Connector | 4 pin industrial DC power socket |
Input voltage range | 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
PoE (passive) | Passive PoE. Possibility to power up through LAN port, not compatible with IEEE 802.3af and 802.3at standards |
Power consumption | 11W Max. |
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
Ethernet | 4 x RJ45 ports, 10/100/1000 Mbps |
Status LEDs | 3 x connection status LEDs, 5x connection strength LEDs, 8x LAN status LEDs, 3x WAN status LEDs, 1x Power LED |
SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8V/3V |
Power | 4 pin industrial DC power socket |
Antennas | 2 x SMA for LTE, 1 x SMA for GNNS |
USB | USB A socket for external devices |
Reset | Reset/restore to default button |
PHYSICAL SPECIFICATION | |
Casing material | Full aluminium housing |
Dimensions | 115 mm x 95 mm x 44 mm (H x W x D) |
Weight | 456g |
Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
OPERATING ENVIRONMENT | |
Operating temperature | -40 C to 75 C |
Operating humidity | 10% to 90% non-condensing |
Ingress Protection Rating | IP30 |
