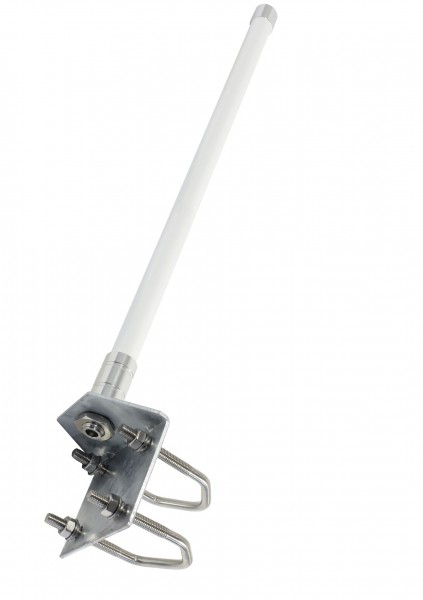

ALLNET Antenn8 868MHz 6dbi Antenne (N-Female) Omni LoRa
- stock: 0
- part no.: 207522
- vendor: ALLNET
- mnufacturer no.: ANT-868-6dbi-OMNI
- EAN No.: 4038816114853
- weight: 0.7kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet DE
2
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
Highlights:
- 860~880MHz omnidirectional antenna, 3 array
- Gain: 6dbi (see data sheet for more details)
- Beam angle: H360 V26
- Impedance: 50 Ohm
- VSWR: <=1.3 @868MHz, Max 1.5
- Connector: N-Type Female (suitable connection cables can be found in the accessories)
- Dimension: Length = 800mm x Diameter 20mm
- Max. Windload: 180km/h
- Temperature: -40°C ~ +60°C
- Mounting: Wall mounting & Mast mounting
- Package contents: Antenna and accessories
- Ideal for LoRA / Helium Network / Helium Miner / IoT terminals / 868MHz systems etc.
Technical Details:
|
Model |
ANT-868-3dbi-OMNI |
ANT-868-5dbi-OMNI, 2 Array |
ANT-868-6dbi-OMNI, 3 Array |
ANT-868-7.3dbi-OMNI, 7 Array |
|
Electrical Specification |
Frequency : 868MHz, 860-880MHz |
|||
|
Polarization |
Vertical Polarized |
|||
|
Max Gain |
3.5dbi |
5dbi |
6dbi |
7.3dbi |
|
H Beamwidth |
360deg / omni coverage |
|||
|
E Beamwidth |
65deg |
32deg |
26deg |
20deg |
|
VSWR |
typical: <1.3 @868MHz, Max 1.5 |
|||
|
Nominal Impedance |
50 ohm |
|||
|
Max Power |
50watts |
|||
|
Mechanical Specification |
||||
|
Connector |
N-Female, Long Neck |
|||
|
Radome |
Fiberglass, Dia 20mm |
|||
|
Color |
White/Grey |
|||
|
Total Length with Connector |
314mm |
600mm |
800mm |
1000mm |
|
Weight incl Mount Kit |
0.55kg |
0.65kg |
0.7kg |
0.8kg |
|
Working Temperature Range |
-45°C to +75°C |
|||
|
Max winload |
180km/h |
|||
|
Storage Temperature |
-50°C to +75°C |
|||
Antenna Test Data:
2D Radio Pattern:
3D Radio Pattern:
