DRAGINO · Sensor · LoRa · LoRaWAN Temperatur & Humidity Sensor · LHT65N-EU868-NE117
- stock: 0
- part no.: 214035
- vendor: DRAGINO
- mnufacturer no.: LHT65N-EU868-NE117
- weight: 0.17kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE EU RoHS und REACH ErklärungDRAGINO LHT65N-EU868-NE117 Temperature & Humidity Sensor
Overview

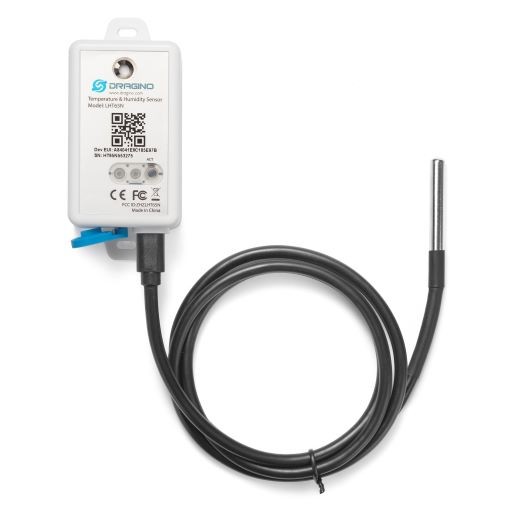

The Dragino LHT65N-NE117 temperature and humidity sensor is a long-range LoRaWAN sensor. It contains a built-in SHT20 temperature and humidity sensor and has an external NE117 temperature sensor.
The LHT65N-NE117 allows users to send data and achieve extremely long ranges. It offers spread-spectrum communication with extremely long range and high noise immunity with minimal power consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, etc. The LHT65N-NE117 has a built-in 2400mAh non-rechargeable battery that can be used for more than 10 years*. The LHT65N-NE117 is fully compatible with LoRaWAN v1.0.2 protocol, it can work with standard LoRaWAN gateway. The LHT65N-NE117 has 3200 records with date and time, which can be retrieved with date and time for further analysis.
Features
LoRaWAN Class A protocol
Frequency bands: EU868
AT commands to change parameters
Remote configuration parameters via LoRaWAN downlink
Firmware upgrade possible via program port
Built-in 2400mAh battery for more than 10 years of use.
Built-in temperature and humidity sensor
Optional external sensors
Three-color LED for status indication
Data logging in case of interrupted network connectivity
Applications
Wireless alarm and security systems
Home and building automation
Automatic meter reading
Industrial monitoring and control
Long range irrigation systems, etc.
Scope of delivery
1 x Dragino LHT65N-EU868-NE117 humidity and temperature sensor
1 x NE117 temperature sensor
