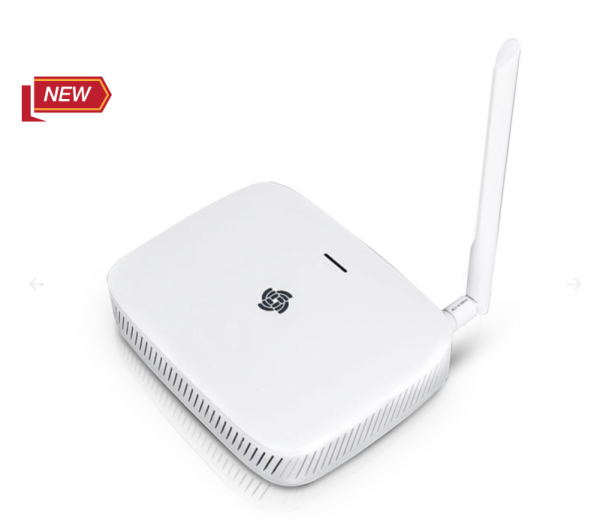

RAK Wireless Micro Indoor Gateway WisGate Edge Lite 2 LTE

RAK Wireless Micro Indoor Gateway WisGate Edge Lite 2 LTE

RAK7268C DDR2 128MB, 8 Channel, LTE

Overview

The RAK7268C WisGate Edge Lite 2 is a complete 8-channel indoor gateway based on the LoRaWAN protocol with built-in Ethernet connectivity for a straightforward setup. Additionally, there is a built-in Wi-Fi setup (with support for 2.4 GHz Wi-Fi) that allows for easy configuration via standard Wi-Fi AP mode. The gateway also supports LTE uplink communication links (optional).

Like the other RAKwireless industrial gateways, it also supports MQTT bridge mode with the option of TLS authentication. Power-over-Ethernet (PoE) is supported to serve cases where wall or ceiling mounting is required without installing additional power lines.

The open-source software for managing and configuring this gateway device is based on OpenWRT. It features a built-in LoRa packet forwarder and a graphical user interface that allows for quick setup without sacrificing the freedom of a fully customized solution.

RAK7268 also supports the MQTT Bridge feature, which can integrate MQTT on third-party platforms.

RAK7268 is particularly suitable for small and medium-sized deployment scenarios in industry, saving the additional cost of servers and R&D investment, and has the advantages of high execution efficiency.

Features

• Full LoRaWAN stack support (V 1.0.3) with Semtech SX1302
• Supports 2.4 GHz Wi-Fi AP for configuration
• 100M Base-T Ethernet with PoE
• Multi-Backhaul with Ethernet, Wi-Fi, Cellular
• OpenWRT software supports Web UI for easy configuration and monitoring
• Can integrate with both private (ChirpStack) and public (TTN) network servers
• TF card for log backup and LoRa frame buffering (in case of backhaul failover)
• Integrated network server for easy application deployment and gateway integration
• LTE Cat 4 network

Scope of delivery

1 x WisGate Edge Lite 2/2+
1 x LoRa antenna
1 x mounting screws
1 x dowel
1 x power adapter

Link to the datasheet:

RAK7268 WisGate Edge Lite 2 Datasheet | RAKwireless Documentation Center
