Preview: ALLNET Antenna 868MHz 3,5dbi Antenne (N-Female) Omnidirecti Preview: ALLNET Antenna 868MHz 3,5dbi Antenne (N-Female) Omnidirecti Preview: ALLNET Antenna 868MHz 3,5dbi Antenne (N-Female) Omnidirecti Preview: ALLNET Antenna 868MHz 3,5dbi Antenne (N-Female) Omnidirecti
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Description Accessories 13
Description
Highlight: 860~880MHz omnidirectional antenna Gain: 3.5dbi (See data sheet for more... more
Close menu

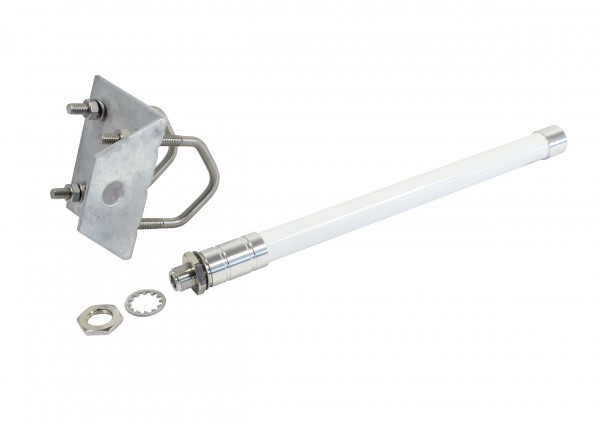

Product information "ALLNET Antenna 868MHz 3,5dbi Antenne (N-Female) Omnidirecti"

Highlight:

  • 860~880MHz omnidirectional antenna
  • Gain: 3.5dbi (See data sheet for more details)
  • Beam angle: H360 V65
  • Impedance: 50 Ohm
  • VSWR: <=1.3 @868MHz, Max 1.5
  • Connector: N-Type Female (suitable connection cables can be found in the accessories)
  • Dimension: Length = 314mm x Diameter 20mm
  • Windspeed: 180km/h
  • Temperature: -45°C ~ +75°C
  • Mounting: Wall mounting & Mast mounting
  • Package contents: Antenna and mounting accessories
  • Ideal for LoRA / Helium Network / Helium Miner / IoT terminals / 868MHz systems etc.

Technical Details:

Model

ANT-868-3dbi-OMNI

ANT-868-5dbi-OMNI, 2 Array

ANT-868-6dbi-OMNI, 3 Array

ANT-868-7.3dbi-OMNI, 7 Array

Electrical Specification

Frequency : 868MHz, 860-880MHz

Polarization

Vertical Polarized

Max Gain

3.5dbi

5dbi

6dbi

7.3dbi

H Beamwidth

360deg / omni coverage

E Beamwidth

65deg

32deg

26deg

20deg

VSWR

typical: <1.3 @868MHz, Max 1.5

Nominal Impedance

50 ohm

Max Power

50watts

Mechanical Specification



Connector

N-Female, Long Neck

Radome

Fiberglass, Dia 20mm

Color

White/Grey

Total Length with Connector

314mm

600mm

800mm

1000mm

Weight incl Mount Kit

0.55kg

0.65kg

0.7kg

0.8kg

Working Temperature Range

-45°C to +75°C

Max winload

180km/h

Storage Temperature

-50°C to +75°C

Antenna Test Data:

2D Radio Pattern:

3D Radio Pattern:

Mechanical Dimmension:

Installation:
