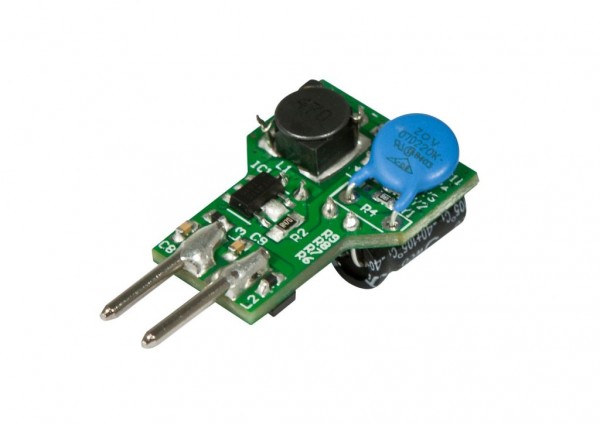

Synergy 21 Power supply unit - CC Driver ALL1084
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 112526
- vendor: Synergy 21 LED
- mnufacturer no.: ALL1084
- EAN No.: 4038816112521
- weight: 0.01kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
GX5.3 power supply unit 1-9Watt, adjustable in 16 steps
Input: 12Vac / 12Vdc
Input range:... more
Product information "Synergy 21 Power supply unit - CC Driver ALL1084"
GX5.3 power supply unit 1-9Watt, adjustable in 16 steps
Input: 12Vac / 12Vdc
Input range: 8-14Vac / 8-18Vdc
Output current: 210-1100mA (adjustable in 16 steps)
Constant current source (CC)
Output voltage range: < input voltage
Temperature range: -25 to 75°C
Efficiency: 77-85%
Output power is reduced above 75°C
Extremely low EMI interference
EMC: EN55012/55022 Class B
For unregulated and regulated switching power supplies as well as conventional wound transformers
Further technical details can be found in the data sheet.
Produktmerkmale:
| Ampere: | 0.21-1,1 |
| Betriebstemperatur: | -25 bis +75 |
| CC oder CV: | CC |
| Dimmbar: | Nein |
| Schutzklasse: | IP20 |
