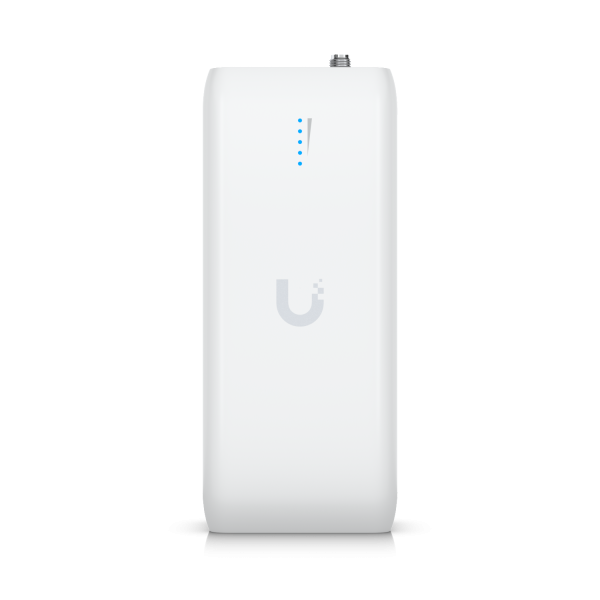

Ubiquiti Wireless Device Bridge • AC867 • 2x2 • Indoor • 1 GbE • PoE • UniFi • UDB

product pictures similar, may differ from the product description!

Arriving soon. Delivery Date unknown

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link. (1) GbE... more

Product information "Ubiquiti Wireless Device Bridge • AC867 • 2x2 • Indoor • 1 GbE • PoE • UniFi • UDB"

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.

(1) GbE LAN port that provides up to 15 W PoE

5 GHz band with up to 867 Mbps throughput rate

Compatible with UniFi Protect PoE cameras, Talk phones and various IoT devices via an Ethernet connection

_{Note : UniFi consoles and APs must have the latest software updates installed.}

Mechanical
Dimensions	130 x 55 x 34 mm (5.1 x 2.2 x 1.3 inches)
Weight	200 g
Favourite material	Polycarbonate
Mounting material	Polycarbonate
Hardware
Management interface	W-lan
Network interface	(1) GbE RJ45 port
PoE interface	(1) Passive PoE output
Button	(1) Factory reset
LED	(4) Blue: Signal (1) White/blue: display
Power method	100–240 V alternating current, 0.45 A max., 50/60 Hz
Max. Power consumption	AC input: 25 W , without PoE output: 10 W
Max. PoE power per port	15 W
Supported voltage range	100–240 V alternating current
WLAN standards	802.11a/n/ac
Max. Transmission power 2.4 GHz 5 GHz 6 GHz	– 21 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	– 2 x 2 –
Max. Data rate 2.4 GHz 5 GHz 6 GHz	– 866.7 Mbit/s (BW80) –
Antenna gain 2.4 GHz 5 GHz 6 GHz	– Internal antenna: 5 dBi / External omnidirectional antenna: 4 dBi –
Antenna	(1) Internal antenna (1) RP-SMA connector for external omni antenna
Mounting	Wall (included)
Operating ambient temperature	-10 to 40 °C (14 to 104 °F)
Humidity during operation	5 to 95 % non-condensing
Certifications	CE, FCC, IC
Supported data rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbit/s
802.11n	6.5 Mbit/s to 300 Mbit/s (MCS0 – MCS15, HT 20/40)
802.11ac	6.5 Mbit/s to 866.7 Mbit/s (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
