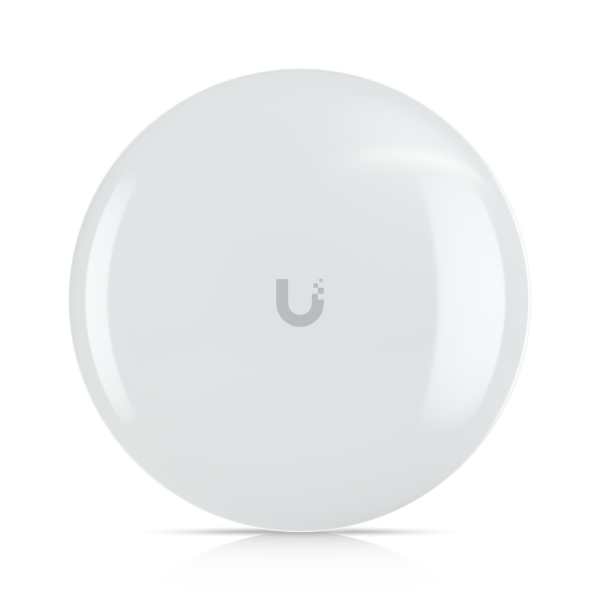

Ubiquiti Wireless Device Bridge Pro • AC867 • 2x2 • Outdoor • 1 GbE • PoE+ • UniFi • UDB-Pro
-
EU RoHS und REACH Erklärung
- stock: 0
- part no.: 235542
- vendor: Ubiquiti
- mnufacturer no.: UDB-Pro
- weight: 0.515kg
- warranty: 12 months
- Do you have any questions concerning this product?
5 GHz wireless bridge with PoE output that establishes connections over distances of more than... more
Product information "Ubiquiti Wireless Device Bridge Pro • AC867 • 2x2 • Outdoor • 1 GbE • PoE+ • UniFi • UDB-Pro"
5 GHz wireless bridge with PoE output that establishes connections over distances of more than 5 km or seamlessly uplinks to UniFi WiFi.
Connect over a distance of more than 5 km with a point-to-point connection to another Device Bridge Pro or establish a seamless uplink with UniFi WiFi Auto-Link.
(2) GbE ports with (1) PoE output for PoE devices
Power supply via PoE/PoE+*
Mast mounting
Weatherproof (can be used outdoors)
Sold individually
Note: Cannot be set up independently and must be managed by a UniFi console, official UniFi hosting or a self-hosted UniFi network server
*PoE adapter included in the scope of delivery. PoE+ input required for PoE passthrough.
Mechanical | |
---|---|
Maße | Ø189.5 x 64.3 mm (Ø7.4 x 2.5 inches) |
Weight | Without mount: 431 g (1 lb) With bracket: 515 g (1.1 lb) |
Walking material | UV-resistant polycarbonate |
Mounting material | UV-stabilised polycarbonate, stainless steel |
Diameter of the pole mount | 2053.1 mm (0.82.1") at the tube diameter |
Wind load | 69 N at 200 km/h (15.5 lbf at 125 mph) |
Weather resistance | IPX6 |
Hardware | |
Network interface | (2) GbE RJ45 ports |
Management interface | Ethernet- WLAN |
PoE interface | (1) PoE input (PoE output not used) (1) Passive PoE output |
Power method | PoE PoE+ (required for PoE output) |
Power supply | UniFi PoE switch 48 V, 0.32 A PoE adapter (included in the scope of delivery) |
Supported voltage range | 42.557 V direct current |
Max. Power consumption | 9W |
Max. Transmission power 2.4 GHz 5 GHz 6 GHz |
25 dBm |
Max. Data rate 2.4 GHz 5 GHz 6 GHz |
867 Mbit/s (BW80) |
MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 |
Antenna gain 2.4 GHz 5 GHz 6 GHz |
19 dBi |
Antenna | Internal |
Range | 5+ km |
LEDs | Power supply, Ethernet, (4) signal strength |
Button | Factory reset |
Mounting | Pole (included in the scope of delivery) |
Operating ambient temperature | -40 to 60 °C (-40 to 140 °F) |
Humidity during operation | 5 to 95 % non-condensing |
Certifications | CE, FCC, IC |
Software | |
WLAN standards | 802.11a/n/ac |
Wireless security | WPA2 AES (always on) |
Operating frequency* US/CA Worldwide |
U-NII-1 51505250 MHz U-NII-2A 52505350 MHz U-NII-2C 54705725 MHz U-NII-3 57255850 MHz 51505875 MHz *Depending on the regulatory region |
Channel bandwidth | 20/40/80 MHz |
Max. conducted transmission power | 25 dBm (combined) |
Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2/3), 64QAM (¾), 64QAM (5/6), 256QAM (¾), 256QAM (5/6) |
