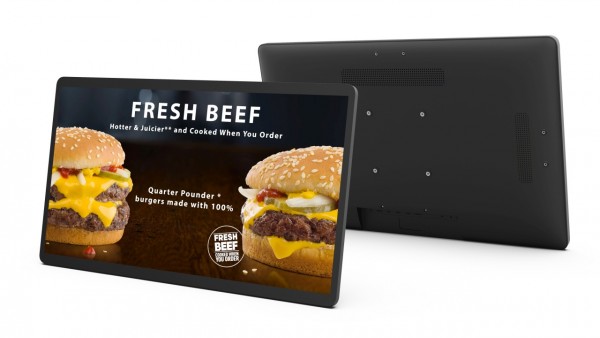

ALLNET High Performance Display 24 Zoll, Android 12, RK3588, HDMI In, Farbe schwarz
- stock: 0
- part no.: 210868
- vendor: ALLNET
- mnufacturer no.: ALLSD24RK3588A12B4G
- EAN No.: 4038816124876
- weight: 4kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
manual
Handbuch EN
EU RoHS und REACH Erklärung
Allnet Display 24 Zoll, TV Style, Interaktives Touch Kioskterminal, Android 12, RK3588, HDMI In, Farbe schwarz
Standfuß optional und nicht im Lieferumfang!!!
- Hochperfomanter RK3588 Chipsatz Octa Core (4xA73+4xA55)
- 4GB Arbeitsspeicher
- Wifi 6 Gigabit Wlan
- NFC (optional ext. USB NFC Modul zur Fixierung an der Seite)
- Android 12 & Linux
- Incell Touchoberfläche
- HDMI Eingang für ext. Geräte
|
System |
CPU |
RK3588 Quad core cortex A55+Quad core cortex A76 |
|
RAM |
4GB | |
|
Internal memory |
32GB | |
|
Operation system |
Android 12 | |
|
Display |
Panel Size |
24"LCD |
|
Panel Type |
IPS | |
|
Resolution |
1920*1080, 3840x2160 | |
|
Display Colors |
16.7M Colors | |
|
Color Gamut |
sRGB 99% | |
|
Display mode |
Normally black | |
|
Viewing angle |
85/85/85/85(L/R/U/D) | |
|
Contrast ratio |
1000:1 | |
|
Luminance |
250cdm2 | |
|
Aspect Ratio |
16:9 | |
|
Response Time |
14ms | |
|
Back-light Type |
Eled | |
|
Touch |
Model Type |
Incell Touch |
|
Number of points |
10-Point | |
|
Interface for touch |
HID-USB | |
|
Network |
WiFi |
802.11b/g/n/a/ac/ax (WiFi 6) |
|
Ethernet |
100M/1000M | |
|
Bluetooth |
Bluetooth 5.0 | |
|
Interface |
Power Jack |
DC power input |
|
MIC IN |
External microphone input | |
|
Earphone Output |
3.5mm earphone output | |
|
Type-c |
Full Function ( Except for charging function ) | |
|
SIM Slot |
Optional 4G/5G Module | |
|
USB |
Standard USB 2.0 Host | |
|
USB |
USB 3.0 | |
|
USB |
USB 3.0 | |
|
HDMI IN |
Support HDMI 2.0 | |
|
RJ45 |
Ethernet interface | |
|
Other |
Product Colors |
white/Black |
|
VESA |
100mm*100mm | |
|
Button |
Power/Vol+/Vol- | |
|
Other Power |
Speaker |
4O*5W*2 |
|
Microphone |
Built in dual Microphone , Support noise reduction and echo cancellation | |
|
NFC |
no | |
|
G-sensor |
Support 90 degrees | |
|
Camera |
no | |
|
Language |
Multi-language | |
|
Certificates |
CE/FCC | |
|
Power Type |
Adapter | |
|
Input Voltage |
DC 12V/4A | |
|
Power consumption |
=25W | |
|
Working Surrounding Accessories |
Storage Temperature |
-20?---60? |
|
Working Temperature |
0?---50? 10~90%RH | |
|
Adapter |
Adapter,12V/4A | |
|
Working Surrounding |
User manual |
yes |
Produktmerkmale:
| Arbeitsspeicher (RAM): | 4 |
| Auflösung Panel: | 3840x2160 |
| Betriebssystem: | Android 12 |
| Bluetooth: | ja |
| Chipset: | RK3588 |
| Diagonale: | 24 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 16 |
| Kamera: | nein |
| Mobilfunk: | USB Stick |
| Montageart: | Vesa 100x100 |
| Produktart: | Display |
| Stromversorgung: | Netzteil |
| Touchscreen: | Capacitiv |
| Video Eingang: | HDMI |
| WLAN: | 2,4/5 |
