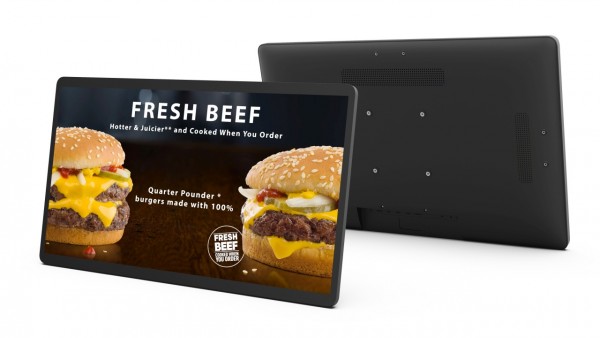

ALLNET High Performance Display 14 Zoll, Android 12, RK3588, NFC, PoE, HDMI In, Farbe schwarz
- stock: 0
- part no.: 212864
- vendor: ALLNET
- mnufacturer no.: Rocket 140-B
- EAN No.: 4038816127464
- weight: 2kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
manual
Handbuch EN
EU RoHS und REACH Erklärung
Google certified Allnet Display 14 inch, TV Style, Interactive Touch Kiosk Terminal, Android 12, RK3588, NFC, colour black
- High-performance RK3588 chipset Octa Core (4xA73+4xA55)
- 8GB RAM, 128GB main memory
- Wifi 6 Gigabit Wlan
- NFC (ext. USB NFC module for fixing on the side)
- Android 12 & Linux
- Incell touch surface
- HDMI input for external devices
|
System |
CPU |
RK3588 Quad core cortex A55+Quad core cortex A76 |
|
RAM |
8GB |
|
|
Internal memory |
32GB |
|
|
Operation system |
Android 12 |
|
|
Display |
Panel Size |
14"LCD |
|
Panel Type |
IPS |
|
|
Resolution |
Standard 1920*1080/ 3840x21060 über Easy DPI Changer |
|
|
Display Colours |
16.7M Colors |
|
|
Colour Gamut |
sRGB 99% |
|
|
Display mode |
Normally black |
|
|
Viewing angle |
85/85/85/85/85(L/R/U/D) |
|
|
Contrast ratio |
1000:1 |
|
|
Luminance |
250cdm2 |
|
|
Aspect Ratio |
16:9 |
|
|
Response Time |
14ms |
|
|
Back-light Type |
Eled |
|
|
Touch |
Model Type |
Incell Touch |
|
Number of points |
10-point |
|
|
Interface for touch |
HID-USB |
|
|
Network |
WiFi |
802.11b/g/n/a/ac/ax (WiFi 6) |
|
Ethernet |
100M/1000M |
|
|
Bluetooth |
Bluetooth 5.0 |
|
|
Interface |
Power Jack |
DC power input |
|
MIC IN |
External microphone input |
|
|
Earphone Output |
3.5mm earphone output |
|
|
Type-c |
Full Function ( Except for charging function ) |
|
|
SIM Slot |
Article 219024 |
|
|
USB |
Standard USB 2.0 Host |
|
|
USB |
USB 3.0 |
|
|
USB |
USB 3.0 |
|
|
HDMI IN |
Support HDMI In for Monitor |
|
|
RJ45 |
Ethernet interface |
|
|
Other |
Product Colours |
white/Black |
|
VESA |
100mm*100mm |
|
|
Button |
Power/Vol+/Vol- |
|
|
Other Power |
Speaker |
4O*5W*2 |
|
Microphone |
Built in dual Microphone , Support noise reduction and echo cancellation |
|
|
NFC |
no |
|
|
G-sensor |
Support 90 degrees |
|
|
Camera |
no |
|
|
Language |
Multi-language |
|
|
Certificates |
CE/FCC |
|
|
Power Type |
Adapter |
|
|
Input Voltage |
DC 12V/4A |
|
|
Power consumption |
=25W |
|
|
Working Surrounding Accessories |
Storage Temperature |
-20°---60° |
|
Working Temperature |
0°---50° 10~90%RH |
|
|
Adapter |
Adapter,12V/4A |
|
|
Working Surrounding |
User manual |
yes |
Produktmerkmale:
| Abmessung: | 336,22 x 209,32 x 27,6 |
| Arbeitsspeicher (RAM): | 8 |
| Auflösung Panel: | 1920x1080 |
| Betriebssystem: | Android 12 |
| Bluetooth: | ja |
| Chipset: | RK3588 |
| Diagonale: | 14 |
| Einsatzbereiche: | Indoor |
| Farbe Displayrand: | schwarz |
| Farbe Gehäuse: | schwarz |
| Hauptspeicher: | 128 |
| IP Schutzklasse Display: | IP 20 |
| Kamera: | nein |
| Mobilfunk: | USB Stick |
| Montageart: | Vesa 100x100 |
| NFC&RFID: | 13,56MHz |
| Produktart: | Display |
| Stromversorgung: | PoE und Netzteil |
| Touchscreen: | Capacitiv |
| Video Eingang: | HDMI |
| WLAN: | 2,4/5 |
