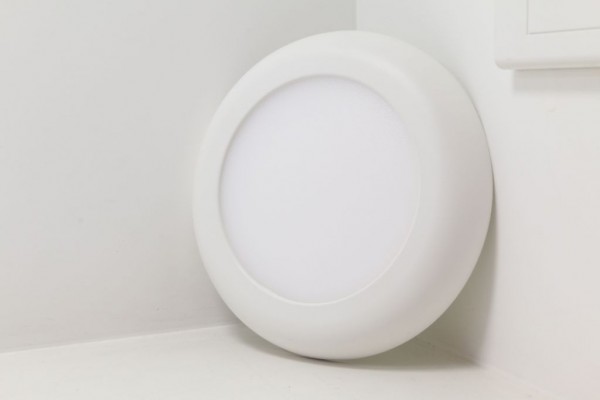

Synergy 21 LED light panel round 6.5W neutral white 2in1 TRIAC dimmable
- stock: 0
- part no.: 159686
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-M00006
- EAN No.: 4038816083067
- weight: 0.178kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
2in1 LED panel round
Suitable for flush-mounted AND surface-mounted installation
Flush-mounted hole size: 65-102mm adjustable
Power consumption : 6,5Watt
Frame colour: white
Number of LEDs: 30LEDs
Number of lumens: 4300lm
Neutral white: 4000k, RA>80
Beam angle 120°
Protection class: IP41
Operating temperature: -20° to +40°
Power supply: incl power supply unit, TRIAC dimmable
Outer diameter: 120mm
Installation diameter: 65-102mm adjustable or surface mounting
Height: 15mm
We recommend connecting the open cable ends with Wago terminals
(e.g. article 80945).
Energy efficiency class: A+
kWh/1000h: 6.5
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| CC oder CV: | CC |
| CRI: | >80 |
| Dimmbar: | TRIAC |
| Grösse: | 120*15 |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäusematerial: | AIuminum |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4000 |
| Lumen: | 430 |
| Schutzklasse: | IP41 |
| Watt: | 6.50 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 6,50 |
| Lumen: | 430 |
| Watt: | 6,5 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
