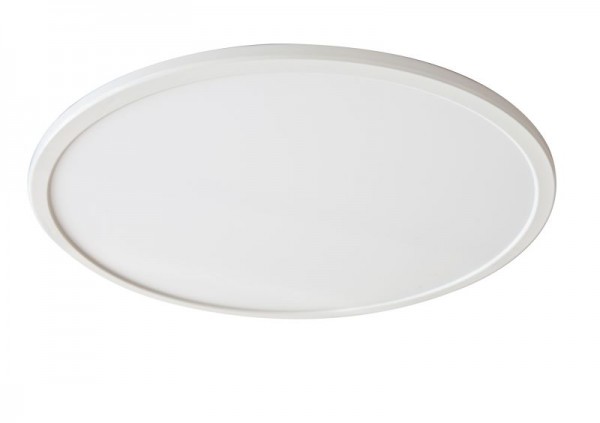

Synergy 21 LED light panel R600 warm white round
- stock: 0
- part no.: 114732
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-J00091
- EAN No.: 4038816032836
- weight: 4.45kg
- warranty: 36 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
manual
EU RoHS und REACH Erklärung
Round Ultra Slim LED Panel Light
Suitable for ceiling suspension
Frame colour: white
Power consumption: 60Watt
Number of lumens: 5000lm
Light colour: warm white 3100k ±100
Colour rendering: CRI: >83
Protection class: IP40
Impact resistance: IK05
Operating temperature: -20° to +60°
Power supply: Power supply unit (#115375), dimmable power supply unit (#113856) & pendant kit (#115374) not included!
Power consumption: 1400mA, 38V/DC
Size: 580mm x 15mm
Weight: 3150g
Suitable power supplies: 1400mA, 38VDC
Meanwell: 113855, 113856 (dimmable), 104642 (dalidimm), 114125 (triac dimm)
Energy efficiency class: A+
kWh/1000h: 66
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 1.40 |
| CC oder CV: | CC |
| CRI: | >83 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| Grösse: | 580*15 |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäuseform: | rund |
| LED - Gehäusematerial: | AIuminum |
| Lichtfarbe: | warmweiss |
| Lichtfarbe in Kelvin: | 3100 |
| Lumen: | 5000 |
| Schutzklasse: | IP40 |
| Volt: | 38 |
| Watt: | 60 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 66.00 |
| Lumen: | 5000.00 |
| Watt: | 60.00 |
| Nennlebensdauer: | 50000.00 Std. |
| Schaltzyklen: | 100000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
