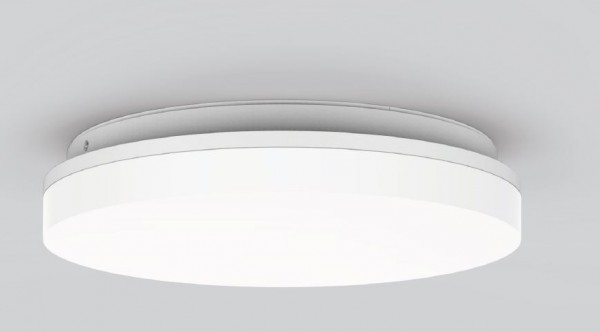

Synergy 21 LED round light Theia IP54 18W dim
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 166176
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-001146
- EAN No.: 4038816085054
- weight: 0.96kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
IP54 round light, adjustable light colour ww/nw/cw
Connection: 200-240VAC
Dimmable: Yes, triac... more
Product information "Synergy 21 LED round light Theia IP54 18W dim"
IP54 round light, adjustable light colour ww/nw/cw
Connection: 200-240VAC
Dimmable: Yes, triac
Wattage: 18 watts
Lumen: 1570-1700lm
CRI: >80
Light colour: adjustable via switch: 3000/4000/5700K
Protection class: IP54, IK10
Operating temperature: -20° +45° C
Glow wire test: 750°C cover, 850°C lamp base
Beam angle: 120°
Size: Ø300mm
Height: 58mm
Weight: 960 g
Housing colour: RAL9016
Mounting:
Clamp block in the lamp
2 mounting screws included.
Energy efficiency class: A+
kWh/1000h: 18
Image similar
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Betriebstemperatur: | -20 bis +45 |
| CRI: | >80 |
| Dimmbar: | TRIAC |
| Grösse: | Ø300*58 |
| LED - Gehäusefarbe: | weiß RAL9016 |
| LED - Gehäusematerial: | Kunststoff |
| Lichtfarbe: | einstellbar |
| Lichtfarbe in Kelvin: | 3000/4000/5700 |
| Lumen: | 1170-1265 |
| Schutzklasse: | IP54/IK10 |
| Volt: | 230 |
| Watt: | 18 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 18,00 |
| Lumen: | 1656 |
| Watt: | 18,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
