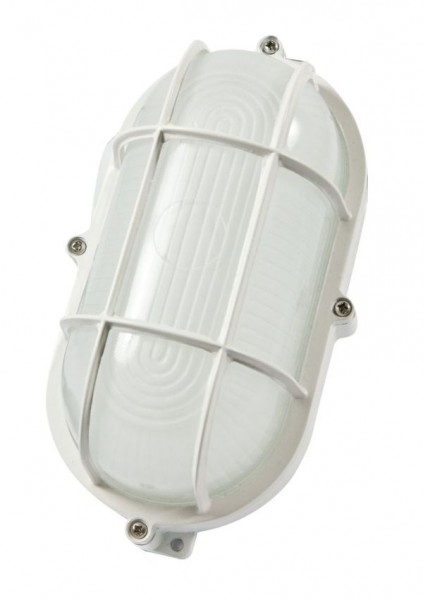

Synergy 21 LED basement light oval IP65 5W cw
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 122700
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-NB00213
- EAN No.: 4038816122704
- weight: 0.77kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
EU RoHS und REACH Erklärung
Synergy 21 LED basement light IP65
Connection: 90-265V
Wattage: 5 Watt
Lumen: 500 lm
CRI:... more
Product information "Synergy 21 LED basement light oval IP65 5W cw"
Synergy 21 LED basement light IP65
Connection: 90-265V
Wattage: 5 Watt
Lumen: 500 lm
CRI: >80
Light colour: cool white, 6250±250K
Operating temperature: -20° +45° C
Beam angle: 140°
Size: 212*118*85mm
Weight: 770 g
Mounting:
Clamp block in the lamp
Energy efficiency class: A++
kWh/1000h: 5
Image similar
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 5.00 |
| Lumen: | 500.00 |
| Watt: | 5.00 |
| Nennlebensdauer: | 40000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
