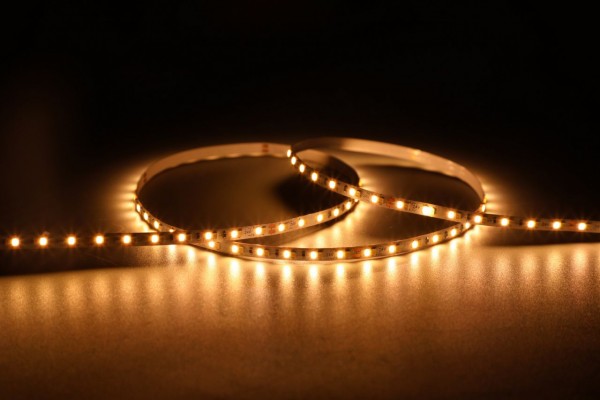

Synergy 21 LED Flex Strip 160 NW DC24V 96W HP IP68
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 231963
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F0240062
- EAN No.: 4038816134073
- weight: 0.2kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip 160 Serie
Spannung: 24V,
Watt: 19,2W/m 96W gesamt
Lichtfarbe:... more
Product information "Synergy 21 LED Flex Strip 160 NW DC24V 96W HP IP68"
Synergy 21 LED Flex Strip 160 Serie
Spannung: 24V,
Watt: 19,2W/m 96W gesamt
Lichtfarbe: neutralweiss , 4000K, CRI>90
Helligkeit: 100Lm/W, 1920Lm/m, gesamt: 9600Lm
Abstrahlwinkel: 120°
Schutzklasse: IP68
LED Anzahl: 160LEDs/m, Gesamt: 800LEDs
LED Type: 2835
Schnittmaß:50mm
Maße LED Strip: 5000*10*6 mm
Arbeitstemperatur: -25°C bis +40°C
Klebeband: ja 3M rückseitig
Achten sie darauf, dass der LED Strip die Arbeitstemperatur von 40°C nicht überschreitet, da sonst die Lebensdauer nicht gewährleistet werden kann.
Auf überhitzte LED Strips kann keine Garantie gewährt werden.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 4 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | abhängig vom Netzteil |
| EPREL_ANTI_GLARE_SHIELD: | false |
| EPREL_BEAM_ANGLE: | 220 |
| EPREL_CAP_TYPE: | E27 |
| EPREL_CHROMATICITY_COORD_X: | 0.382 |
| EPREL_CHROMATICITY_COORD_Y: | 0.380 |
| EPREL_CLAIM_EQUIVALENT_POWER: | false |
| EPREL_COLOUR_CONSISTENCY: | 3.7 |
| EPREL_COLOUR_RENDERING_INDEX: | 91 |
| EPREL_COLOUR_TUNEABLE_LIGHT_SOURCE: | false |
| EPREL_CONNECTED_LIGHT_SOURCE: | true |
| EPREL_CORRELATED_COLOUR_TEMP: | 4163 |
| EPREL_CORRELATED_COLOUR_TEMP_TYPE: | SINGLE_VALUE |
| EPREL_DIMENSION_DEPTH: | 1000 |
| EPREL_DIMENSION_HEIGHT: | 5 |
| EPREL_DIMENSION_WIDTH: | 11 |
| EPREL_DIMMABLE: | YES |
| EPREL_DIRECTIONAL: | NDLS |
| EPREL_DISPLACEMENT_FACTOR: | 0.55 |
| EPREL_ENERGY_CLASS: | E |
| EPREL_ENERGY_CONS_ON_MODE: | 6 |
| EPREL_FLICKER_METRIC: | 0.1 |
| EPREL_HIGH_LUMINANCE_LIGHT_SOURCE: | false |
| EPREL_LIGHTING_TECHNOLOGY: | LED |
| EPREL_LUMEN_MAINTENANCE_FACTOR: | 0.55 |
| EPREL_LUMINOUS_FLUX: | 2341 |
| EPREL_MAINS: | MLS |
| EPREL_MAX_BEAM_ANGLE: | 220 |
| EPREL_MAX_COLOUR_RENDERING_INDEX: | 92 |
| EPREL_MIN_BEAM_ANGLE: | 219 |
| EPREL_MIN_COLOUR_RENDERING_INDEX: | 90 |
| EPREL_PEAK_LUMINOUS_INTENSITY: | 143 |
| EPREL_POWER_ON_MODE: | 6.0 |
| EPREL_POWER_STANDBY: | 0.40 |
| EPREL_POWER_STANDBY_NETWORKED: | 0.40 |
| EPREL_R9_COLOUR_RENDERING_INDEX: | 73 |
| EPREL_REGISTRANT_NATURE: | IMPORTER |
| EPREL_STROBOSCOPIC_EFFECT_METRIC: | 0.1 |
| EPREL_SURVIVAL_FACTOR: | 0.55 |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 12,5 |
| LED Strip Höhe: | 6 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4000 |
| Lumen: | 9600 |
| Schutzklasse: | IP68 |
| Volt: | 24 |
| Watt: | 96 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse E | |
|---|---|
| kwh/1000h: | 96.00 |
| Lumen: | 9600.00 |
| Watt: | 96.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
