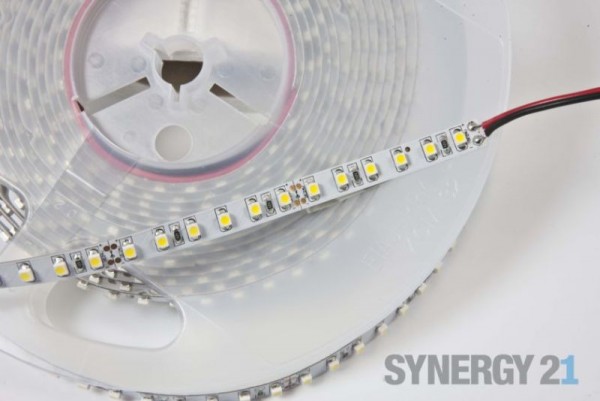

Synergy 21 LED Flex Strip 120 NW DC24V 48W IP20
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 100869
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00025
- EAN No.: 4038816987082
- weight: 0.126kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
EU RoHS und REACH Erklärung
LED Flex Strip neutral white,
DC24V, max. 2A, 48W ± 10%,
600Leds, 120°, 3528SMD
Lumen: 3600... more
Product information "Synergy 21 LED Flex Strip 120 NW DC24V 48W IP20"
LED Flex Strip neutral white,
DC24V, max. 2A, 48W ± 10%,
600Leds, 120°, 3528SMD
Lumen: 3600
4100-4400K
CRI: >80
Length: 5000*8*2.5mm
Adhesive tape for mounting aid on the back
indoor
Can be shortened every 6 LEDs
Strip can be shortened at marking points with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split strip when no current is present.
Energy efficiency class: A+
kWh/1000h: 48
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, otherwise the service life cannot be guaranteed.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2 |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 8 |
| LED Strip Höhe: | 2.50 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4250 |
| Lumen: | 3600 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 48 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 48,00 |
| Lumen: | 3600 |
| Watt: | 48,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
