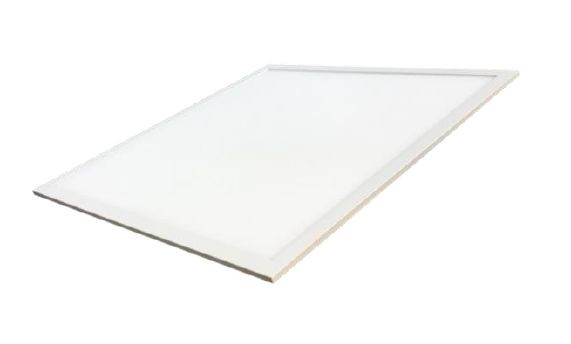

Synergy 21 LED light panel 620*620 warm white 35W V3 PRO white UGR<19
- stock: 0
- part no.: 149079
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-J00259
- EAN No.: 4038816071262
- weight: 3.75kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet EN EU RoHS und REACH ErklärungUltra Slim LED Panel Light, PRO version
Intended use: Installation in the Odenwald ceiling
Other types of installation are also possible with optional accessories
(surface-mounted, flush-mounted, suspended, wall-mounted and recessed, etc.)
Frame colour: white
Power consumption: 35 watts
Lumen output: 4200Lm, Lm/W=120
Light colour: warm white 3000K
MacAdam/SDCM < 3
Colour rendering index (CRI): >83
Beam angle: 120°
Unified glare rating: UGR<19
Protection class: IP40 / IK05
Rated lifetime (L80): 50,000h
Operating temperature: -10° to +45° (Amb.)
Power supply: 700mA & 42±2V/DC (constant current)
Attention: the panel is supplied WITHOUT power supply as standard.
Power supply: see accessories
Size (outer dimensions): 622mm x 622mm x 12mm
Size (hole dimensions): 605mm x 605mm
Warranty: 5 years
Energy efficiency class: A+
kWh/1000h: 38.5
IES files download: http://www.synergy21.de/service-support/downloads/lichtberechnung-ies/
Produktmerkmale:
Abstrahlwinkel: | 120 |
Ampere: | 0.70 |
CRI: | 80 |
Dimmbar: | abhängig vom Netzteil |
Grösse: | 620*620 |
LED - Gehäusefarbe: | weiß |
Lichtfarbe: | warmweiss |
Lichtfarbe in Kelvin: | 3000 |
Lumen: | 4200 |
Schutzklasse: | IP40 |
UGR: | <19 |
Energieeffizienz Klasse E | |
---|---|
kwh/1000h: | 38,50 |
Lumen: | 4200 |
Watt: | 35,0 |
Nennlebensdauer: | 35000 Std. |
Schaltzyklen: | 50000 |
Opt. Umgebungstemperatur: | 25 °C |
EEK Label | Download |
