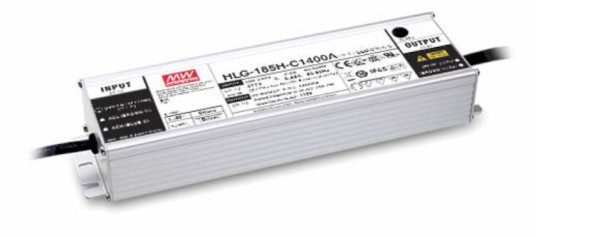

Mean Well power supply - CC Driver 700mA ~286V 0-10V dimm
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 167273
- vendor: Meanwell
- mnufacturer no.: HLG-185H-C700B
- weight: 1.15kg
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
HLG-185H-C700B
Attention: Constant current with 700mA
IP42
dimmable (1-10 Volt, PWM dimmer) ,... more
Product information "Mean Well power supply - CC Driver 700mA ~286V 0-10V dimm"
HLG-185H-C700B
Attention: Constant current with 700mA
IP42
dimmable (1-10 Volt, PWM dimmer) , IP65
Input: 90~305VAC, 127~431VDC
Output: 700mA, 143~286V , 199,5 Watt
Operating temperature: -40°C to +80°C
LxWxH 220*68*38.8mm
Protection mark: See meanwell.com
Open cable ends
please refer to data sheet.
Produktmerkmale:
| Ampere: | 0.70 |
| Betriebstemperatur: | -40 bis +80 |
| CC oder CV: | CC |
| Dimmbar: | ja |
| Grösse: | 220*68*38,8 |
| Schutzklasse: | IP65 |
| Volt: | 143-286 |
| Watt: | 199,5 |
