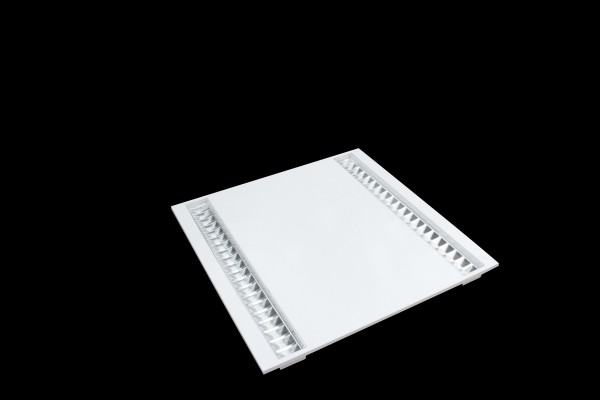

Synergy 21 LED light panel 620*620 ROW neutral white 30W white UGR<19
- stock: 0
- part no.: 156642
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-J00300
- EAN No.: 4038816156648
- weight: 1.5kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Ultra Slim LED Panel Light, ROW version
Intended use: Installation in the Odenwald ceiling
Frame colour: white (aluminium)
Power consumption: 30 watts
Number of lumens: 3550Lm, Lm/W=120
Light colour: neutral white 4000
MacAdam/SDCM = 3
Colour rendering index (CRI): >80
SDCM: <=4
Beam angle: 90° (optics = opal)
Unified glare rating: UGR<19
Protection class: IP20 / IK05
Rated lifetime (L80): 50,000h
Operating temperature: -20° to +45° (Amb.)
Power supply: 700mA, 27-42V, 30W, power supply unit see accessories
Size (external dimensions): 622mm x 622mm x 30mm
Warranty: 5 years
Energy efficiency class: A++
kWh/1000h: 30
IES files download: http://www.synergy21.de/service-support/downloads/lichtberechnung-ies/
Produktmerkmale:
| Abstrahlwinkel: | 90 |
| Ampere: | 0.70 |
| CC oder CV: | CC |
| CRI: | 80 |
| Dimmbar: | Nein |
| Grösse: | 620*620 |
| LED - Gehäusefarbe: | weiß |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4000 |
| Lumen: | 4200 |
| Schutzklasse: | IP40 |
| UGR: | <19 |
| Watt: | 30 |
