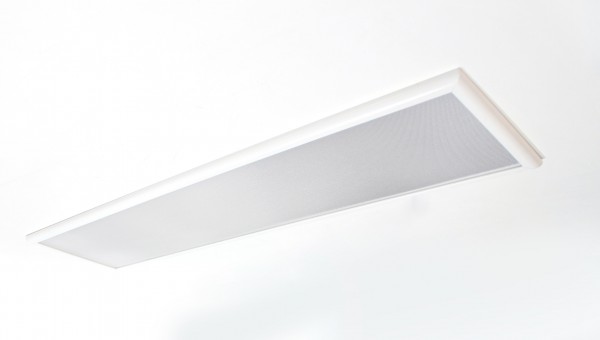

Synergy 21 LED light panel 300*1200 Up& Down PONTOS KW / W UGR<19
product pictures similar, may differ from the product description!
-
Last Stock Article
- stock: 0
- part no.: 148509
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-J00237
- EAN No.: 4038816070555
- weight: 2.3kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Ultra Slim LED Panel Light Model PONTOS UGR
Suitable for ceiling suspension
Frame colour:... more
Product information "Synergy 21 LED light panel 300*1200 Up& Down PONTOS KW / W UGR<19"
Ultra Slim LED Panel Light Model PONTOS UGR<19
Suitable for ceiling suspension
Frame colour: white
Power consumption: 40Watt
Number of lumens: 3600lm (total) 30%UP 70%DOWN
Light colour: 6500k
MacAdam/SDCM = 3
Colour rendering: >CRI 80
Beam angle: 240° (total)
120°(downwards)
120° (upwards)
Protection class: IP20 and IK08
Operating temperature: -20°C to +60°C (Amb.)
Power supply: 1050mA, see accessories for power supply unit
Size: 295mm x 1195mm x 15mm
Mounting kit incl.
Energy efficiency class: A
kWh/1000h: 44
Produktmerkmale:
| Abstrahlwinkel: | 240 |
| Ampere: | 1.05 |
| CRI: | 80 |
| Dimmbar: | Nein |
| Grösse: | 300*1200 |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäuseform: | rechteckig |
| Lichtfarbe: | kaltweiss |
| Lichtfarbe in Kelvin: | 6500 |
| Lumen: | 3600 |
| Schutzklasse: | IP40 |
| UGR: | <19 |
