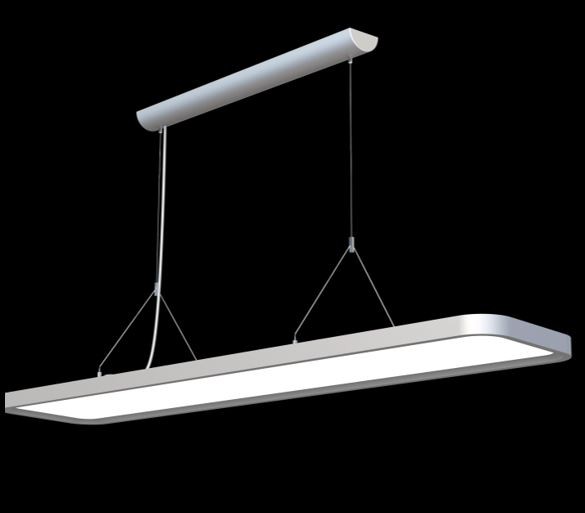

Synergy 21 LED office line suspension panel gray, dimmable
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 149505
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-NB00282
- EAN No.: 4038816071774
- weight: 5kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
Lichtberechnungsdatei
EU RoHS und REACH Erklärung
LED panel office line
Suitable for ceiling suspension (workplace lighting)
Frame colour:... more
Product information "Synergy 21 LED office line suspension panel gray, dimmable"
LED panel office line
Suitable for ceiling suspension (workplace lighting)
Frame colour: grey/silver RAL9006
Power consumption: 60Watt, 20W up, 40W down
Lumen output: 5750lm
Neutral white: 4100k ±150
Colour rendering: CRI >80
UGR: <19 with light downwards, no UGR upwards
Beam angle: 120° (total)
Operating temperature: -20° to +45°
Power supply: 100-240V
Power supply: built-in power supply, 0-10V dimmable
Size: 1200mm x 260mm x 30mm
Aluminium housing incl. ceiling mounting kit
Note: The LED cable with the black strip is connected
connected to the black "LED-" terminal of the power supply unit, the unmarked cable is plugged into the red "LED+" terminal.
Energy efficiency class: A++
kWh/1000h: 66
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| CRI: | 80 |
| Dimmbar: | ja |
| Grösse: | 1200*260 |
| LED - Gehäusefarbe: | grau |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4100 |
| Lumen: | 5750 |
| Schutzklasse: | IP40 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 66,00 |
| Lumen: | 5750 |
| Watt: | 60,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
