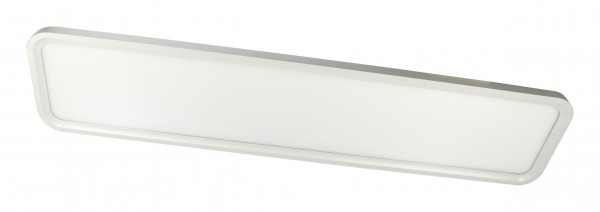

Synergy 21 LED office line ceiling panel white, dimmable
- stock: 0
- part no.: 149504
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-NB00281
- EAN No.: 4038816071767
- weight: 4kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet EN data sheet ES Lichtberechnungsdatei EU RoHS und REACH Erklärung
LED panel office line
Suitable for ceiling mounting (workplace lighting)
Frame colour: white... more
Product information "Synergy 21 LED office line ceiling panel white, dimmable"
LED panel office line
Suitable for ceiling mounting (workplace lighting)
Frame colour: white RAL9003
Power consumption: 60Watt, 10W up, 50W down
Lumen output: 5750lm
Neutral white: 4100k ±150
Colour rendering: CRI >80
UGR: <19 with light downwards, no UGR upwards
Beam angle: 120° (total)
Operating temperature: -20° to +45°
Power supply: 100-240V
Power supply: built-in power supply 0-10V dimmable
Size: 1200mm x 260mm x 30mm
Aluminium housing incl. ceiling mounting kit
Energy efficiency class: A++
kWh/1000h: 66
Produktmerkmale:
Abstrahlwinkel: | 120 |
CRI: | 80 |
Dimmbar: | ja |
Grösse: | 1200*260 |
LED - Gehäusefarbe: | weiß |
Lichtfarbe: | neutralweiss |
Lichtfarbe in Kelvin: | 4100 |
Lumen: | 5750 |
Schutzklasse: | IP40 |
