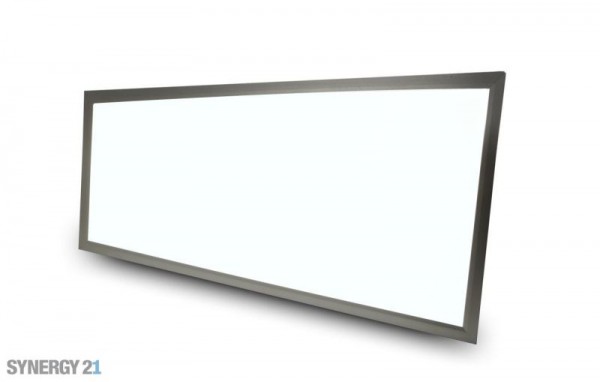

Synergy 21 LED light panel 300*1200 dual white (CCT) 45W V4 white
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 150697
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-J00286
- EAN No.: 4038816150691
- weight: 4kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Ultra Slim LED Panel Light
Frame colour: white
Power consumption: 40Watt
Number of lumens:... more
Product information "Synergy 21 LED light panel 300*1200 dual white (CCT) 45W V4 white"
Ultra Slim LED Panel Light
Frame colour: white
Power consumption: 40Watt
Number of lumens: 4000lm
Light colour: 3000-5700K, CRI>80, 120° beam angle
MacAdam/SDCM <= 3
Protection class: IP40, IK05
Operating temperature: -20° to +40°C
Power supply: Power supply unit not included in the scope of delivery
Power supply unit: 1000mA, see accessories
Attention a dualchannel power supply with max 1000mA and 40Watt is required, e.g.132052
or 2 single power supply units with 500mA each, e.g.: 128760
Size: 295mm x 1195mm x 10mm
Energy efficiency class: A
kWh/1000h: 44
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 1 |
| CRI: | 80 |
| Dimmbar: | Nein |
| Grösse: | 300*1200 |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäuseform: | quadratisch |
| Lichtfarbe: | dualweiss |
| Lichtfarbe in Kelvin: | 3000-5700 |
| Lumen: | 4000 |
| Schutzklasse: | IP40 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 44.00 |
| Lumen: | 4000.00 |
| Watt: | 40.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
