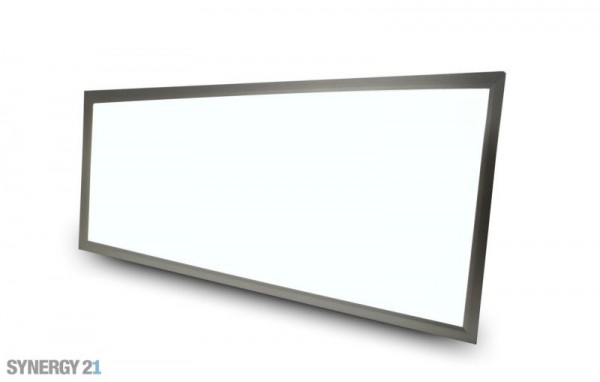

Synergy 21 LED light panel 300*1200 KW / W 45W V4
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 150244
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-J00281
- EAN No.: 4038816150240
- weight: 3kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Ultra Slim LED Panel Light
Frame colour: white
Power consumption: 45Watt, 1050mA
Lumen... more
Product information "Synergy 21 LED light panel 300*1200 KW / W 45W V4"
Ultra Slim LED Panel Light
Frame colour: white
Power consumption: 45Watt, 1050mA
Lumen output: 4500lm
Cool white: 6000K, CRI>80, 120°
MacAdam/SDCM = 3
Protection class: IP20
Operating temperature: 0° to +40°
Power supply: Power supply unit not included in scope of delivery
Power supply: 1050mA, see accessories
Size: 300mm x 1200mm x 12mm
Energy efficiency class: A
kWh/1000h: 50
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 1.05 |
| CRI: | 80 |
| Dimmbar: | Nein |
| Grösse: | 300*1200 |
| LED - Gehäusefarbe: | weiß |
| Lichtfarbe: | kaltweiss |
| Lichtfarbe in Kelvin: | 6000 |
| Lumen: | 4500 |
| Schutzklasse: | IP40 |
| Watt: | 45 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 50,00 |
| Lumen: | 4500 |
| Watt: | 45,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
