Synergy 21 LED Flex Strip 60 KW DC12V 24W IP65
- stock: 0
- part no.: 144818
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-FO0082
- EAN No.: 4038816067784
- weight: 0.2kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung

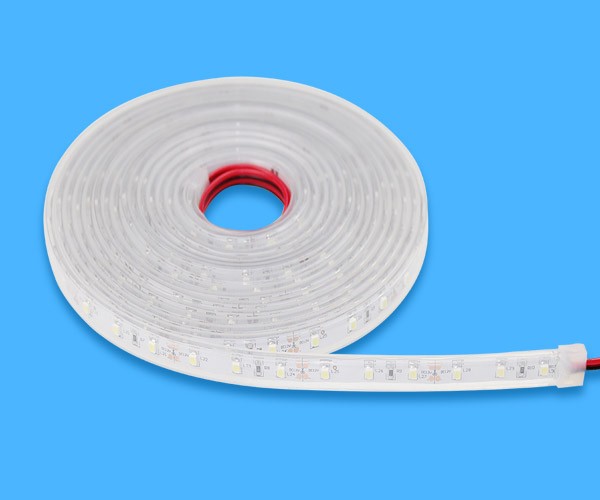

Synergy 21 LED Flex Strip cold white DC12V, 24W, IP65
Voltage: 12V, max.2A
Watt: 24W±10%
Light colour: 6250K±250K cold white
Brightness: 1600lm
Beam angle: 120°
Protection class: IP62, silicone glue from top
LED quantity: 300*3528SMD
Dimensions: 5000*11*5 mm
PCB colour: white, open cable end
Operating temperature: -25°C to +40°C
Weight: 0.090 kg
Can be shortened every 3 LEDs
Energy efficiency class: A
kWh/1000h: 27
Strip can be shortened at the markings with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when there is no current.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2 |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 11 |
| LED Strip Höhe: | 5 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | kaltweiss |
| Lichtfarbe in Kelvin: | 6250 |
| Lumen: | 1600 |
| Schutzklasse: | IP65 |
| Volt: | 12 |
| Watt: | 24 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 27,00 |
| Lumen: | 1600 |
| Watt: | 24,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
