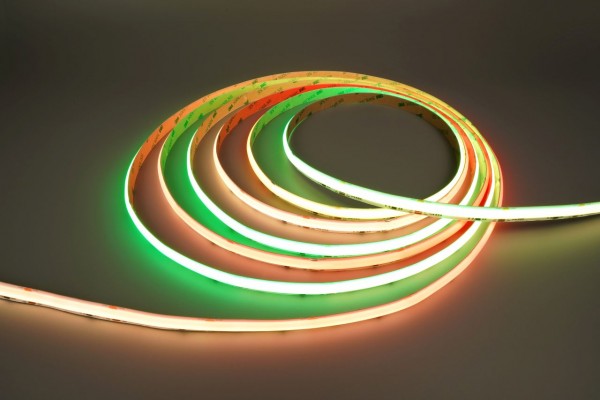

Synergy 21 LED Flex Strip COB - RGBW pixel DC24V WS2814F IP20 5m
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 246061
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-003F0095
- EAN No.: 4038816146601
- weight: 0.3kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
pixel LED RGB flex strip, 5 metres IP20
LED Type: COB RGBW build-in IC
IC Type: WS2814F
LED... more
Product information "Synergy 21 LED Flex Strip COB - RGBW pixel DC24V WS2814F IP20 5m"
pixel LED RGB flex strip, 5 metres IP20
LED Type: COB RGBW build-in IC
IC Type: WS2814F
LED per metre: 1512LED/m total: 7560LEDs
Rated Power: 26W/m, total: 130W (5m)
Volt: 24V
CRI: >90
light colour: RGB+3000K
LED quantity per pixel: 75
Lumens per metre: 840lm, 28Lm/W
Cutting Lenght: 50mm
size: 5000*12*2 mm
Open cable end for power, ~35cm on one side
Working temp: -15° ~ +45°
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed the operating temperature of 40°C, as otherwise the service life cannot be guaranteed.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 5,4 |
| Betriebstemperatur: | -25°C bis +40°C |
| CC oder CV: | CV |
| Dimmbar: | ja |
| Grösse: | 5000*10*2 |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 10 |
| LED Strip Chip Merkmal: | PIXEL/SPI |
| LED Strip Chip Typ: | COB |
| LED Strip Höhe: | 2 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 11 |
| Lichtfarbe: | RGBW |
| Lichtfarbe in Kelvin: | RGBW |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 130 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 130.00 |
| Lumen: | 4200.00 |
| Watt: | 130.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
