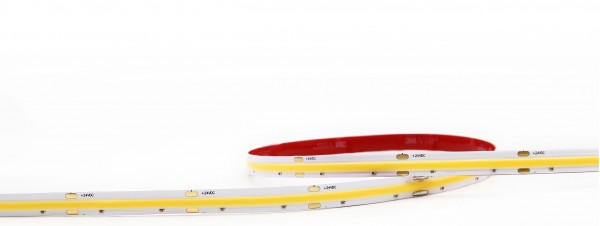

Synergy 21 LED Flex Strip COB - LP WW DC24V 25W IP67
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 235834
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-003F240206
- EAN No.: 4038816137920
- weight: 0.4kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip Series COB low power
A copper strip is embedded on the reverse side... more
Product information "Synergy 21 LED Flex Strip COB - LP WW DC24V 25W IP67"
Synergy 21 LED Flex Strip Series COB low power
A copper strip is embedded on the reverse side to improve stability and heat dissipation.
Voltage: 24V,
Wattage: 5W/m, 25W total
Light colour: warm white, 3000K, CRI>90
Luminous efficacy: 98 lm/W, total: 2450 lm
Beam angle: 120°
Protection class: IP67
Number of LEDs: 480 LEDs/m, total: 2400 LEDs
LED type: COB
Cutting length: 50 mm
LED strip dimensions: 5000 × 10 × 6 mm
Width/height of connector: 12.5 × 8 mm
Operating temperature: -25°C to +40°C
Adhesive tape: yes, 3M on the back
Please ensure that the LED strip does not exceed the operating temperature of 40°C, as otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 1,04 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Breite: | 10 |
| LED Strip Chip Merkmal: | LP |
| LED Strip Chip Typ: | COB |
| LED Strip Höhe: | 6 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | warmweiss |
| Lichtfarbe in Kelvin: | 3000 |
| Lumen: | 2450 |
| Produktname: | COB - LP IP67 |
| Schutzklasse: | IP67 |
| Volt: | 24 |
| Watt: | 25 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 25.000000 |
| Lumen: | 2450.000000 |
| Watt: | 25.000000 |
| Nennlebensdauer: | 50000.000000 Std. |
| Schaltzyklen: | 35000.000000 |
| Opt. Umgebungstemperatur: | 25.000000 °C |
| EEK Label | Download |
