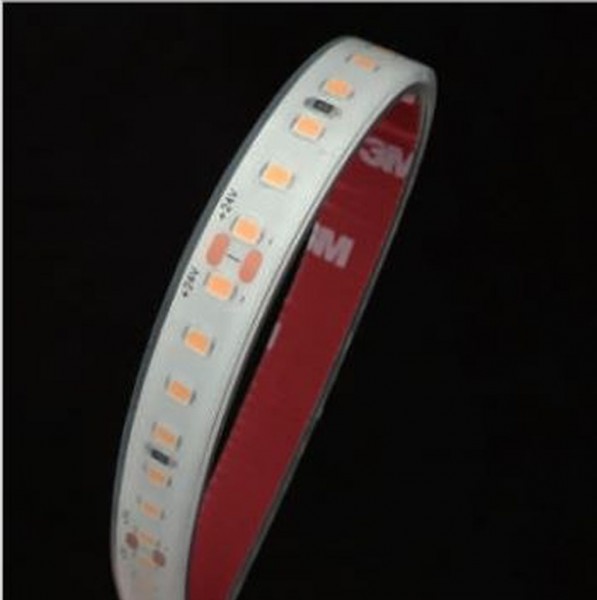

Synergy 21 LED Flex Strip 140 SWW DC24V 75W IP68 CRI>90 2835 super-ww
- stock: 0
- part no.: 198487
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-B220016
- EAN No.: 4038816198488
- weight: 0.2kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip 2835
2835 LED Chip
Length: 5m
Voltage: 24V
Watt: 15W/m, 75W
Light colour: super-warm white, 2500K, CRI>90
Colour shift towards 2700K possible due to IP68 protective jacket
Brightness: 1100lm/m Total: 5500lm
Beam angle: 120°
Protection class: IP68
Number of LEDs: 140*2835SMD/m, total: 700LEDs
Dimensions: 5000*13*3mm
Operating temperature: -25°C to +40°C
Can be shortened every 7 LEDs 50mm
Adhesive tape: yes 3M on the back
Energy efficiency class: A
kWh/1000h: 79.2
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must be checked for functionality beforehand.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
Fig. similar
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 3 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 8 |
| LED Strip Höhe: | 3 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | warmweiss |
| Lichtfarbe in Kelvin: | 2500 |
| Lumen: | 5975 |
| Schutzklasse: | IP68 |
| Volt: | 24 |
| Watt: | 72 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 79,20 |
| Lumen: | 5975 |
| Watt: | 72,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
