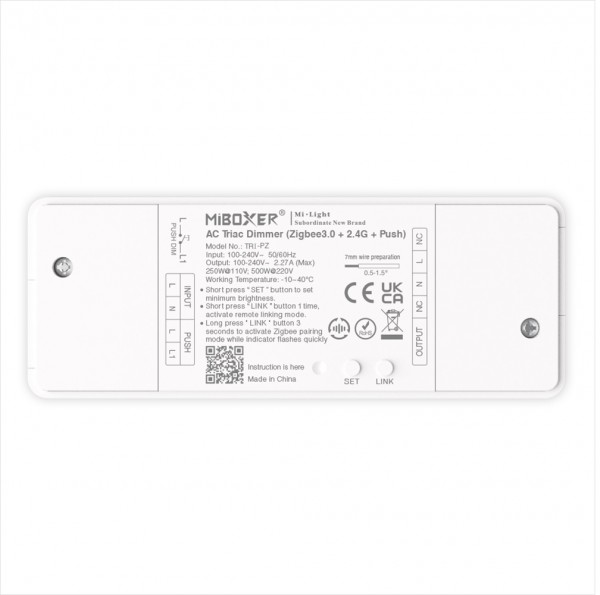

Synergy 21 LED Dimmer Controller AC TRIAC 500W Zigbee 3.0+2,4G+Push *Milight/Miboxer*
- declaration of conformity
- stock: 0
- part no.: 252695
- vendor: Miboxer
- mnufacturer no.: TRI-PZ
- EAN No.: 4038816157935
- weight: 0.11kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
AC Triac Dimmer (Zigbee 3.0 + 2.4G + Push)
- Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps
- Support set up min brightness
- Brightness adjustable
- Product follow zigbee 3.0 standard protocol
- Zigbee Contrl distance: 100m (open area)
- Support amazon alexa and google home control
- Support 2.4G remote control, control distance 30m
Product Parameters
Product Name AC Triac Dimmer (Zigbee 3.0 + 2.4G + Push)
Model No. TRI-PZ
Input Voltage 100-240V~ 50/60Hz
Output Voltage 100-240V~
Output Current Max 2,27A
Output Power 250W @110V; 500W @220V
Dim method Zigbee 3.0 + 2.4G + Push
Zigbee Control Distance 100m (open area)
2.4G RF Control Distance 30m
Working Temperature -10~40°C
Wireless Technology Zigbee 802.15.4
Zigbee Wireless Frequency 2.400-2.480GHz
Produktmerkmale:
| Betriebstemperatur: | -10° ~ 40° |
| Dimmbar: | TRIAC+Push+Wifi+2,4G |
| Grösse: | 117*45*24 |
| Lichtfarbe: | single color |
| Produktname: | LED Controller - TRIAC + Zigbee |
| Schutzklasse: | IP20 |
| Volt: | 230 |
| Watt: | 500 |
