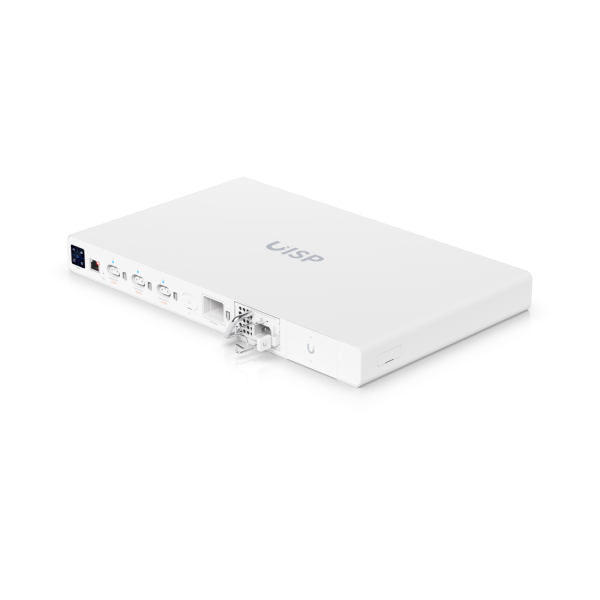

Ubiquiti UISP Power Professional / Delivers up to 480W / DC battery port / UISP-P-Pro
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 221048
- vendor: Ubiquiti
- mnufacturer no.: UISP-P-Pro
- EAN No.: 810010076328
- weight: 4.16kg
- warranty: 12 months
- Do you have any questions concerning this product?

Uninterruptible power management system designed to support high-capacity WISP deployment... more
Product information "Ubiquiti UISP Power Professional / Delivers up to 480W / DC battery port / UISP-P-Pro"
Uninterruptible power management system designed to support high-capacity WISP deployment sites.
(3) Power TransPort outputs
Delivers up to 480W* (27V DC) to supported UISP devices
(2) PSU bays with (1) 250W AC/DC Power Supply included
(1) DC battery port for an external 24V lead-acid battery (not included)
Supports SMS-over-LTE (Cat M1) notification**
Compatible with UISP Console, UISP Router (installed with UISP Box), UISP Router Pro, UISP Switch (installed with UISP Box), UISP Switch Pro
*With (2) power supplies installed.
**Requires a nano-SIM card from a Cat M1 SMS provider.
Technical Specifications
Mechanical | |
---|---|
Dimensions | 442.4 x 267.5 x 43.7 mm (17.4 x 10.5 x 1.7") |
Weight | 4.16 kg (9.2 lb) |
Enclosure materials | SGCC steel, polycarbonate/ABS |
Hardware | |
Networking interface | (1) 10/100 MbE RJ45 LAN port |
Management interface | Ethernet In-Band Bluetooth |
Power TransPort interface | (3) Power TransPort ports [up to 250W (27V DC) output each] Total output: 240W (27V DC) with 1 PSU / 480W (27V DC) with 2 PSUs |
Primary power | (2) Universal AC inputs (100–240V AC, 3.5A Max., 50/60Hz) (1) PSU included (Additional modules sold separately.) |
Backup power | (1) 24V DC, 20.83A lead-acid battery input* (Battery not included.) *Connect to a lead-acid battery only. Using another battery type could be hazardous. |
Supported voltage range | 100 to 240V AC |
Max. power consumption | 3W (Excludes Power TransPort output and battery charger.) |
ESD/EMP protection | Air: ±15 kV / Contact: ± 8 kV |
LCM display | 1.3" touchscreen |
Operating temperature | -10 to 50° C (14 to 122° F) |
Operating humidity | 5 to 95% non-condensing |
Certifications | CE, FCC, IC, PTCRB, AT&T |
LTE | |
Antenna | External (included) |
SIM | Nano-SIM |
Category | Cat M1 |
Bands | US/Canada: FDD-LTE Bands 2, 4, 12, 13 (AT&T Network-Ready) EU: FDD-LTE Bands 1, 3, 8, 20, 28 |
Notification type | SMS (Requires a nano-SIM card from a Cat M1 SMS provider.) |
Input rating | 5V DC, 0.5A |
LEDs | |
System | Status |
RJ45 data ports | Link/activity |
Power TransPort | On/Off |
Compatibility | |
Supported models | UISP Console UISP Router (installed with UISP Box) UISP Router Pro UISP Switch (installed with UISP Box) UISP Switch Pro |
Software | |
Management application | UISP: Version 1.4.8 and later |
