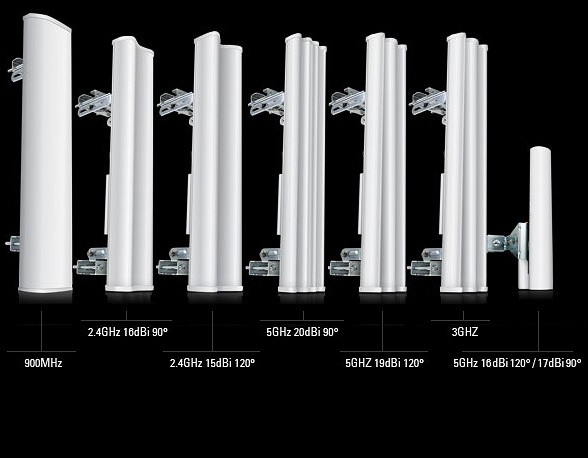

Ubiquiti sector antenna AirMax MIMO 20dBi 5GHz, 90°, rocket
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 107458
- vendor: Ubiquiti
- mnufacturer no.: AM-5G20-90
- EAN No.: 810354020926
- weight: 4.775kg
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
5 GHz, 120º, 19 dBi or 90º, 20 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP)... more
Product information "Ubiquiti sector antenna AirMax MIMO 20dBi 5GHz, 90°, rocket"
5 GHz, 120º, 19 dBi or 90º, 20 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
2x2 dual-polarity performance
Robust mechanical design for outdoor application use
Compatible with Rocket Prism 5AC
Technical Specifications
| AM-5G19-120 | |
|---|---|
| Dimensions (mm) | 700 x 135 x 73 mm (27.6 x 5.3 x 2.9") |
| Weight | 5.9 kg (13 lb) |
| Frequency Range | 5.15 - 5.85 GHz |
| Gain | 18.6 - 19.1 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 123° (6 dB) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 89 N @ 160 km/h (20 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| AM-5G20-90 | |
| Dimensions | 700 x 135 x 70 mm (27.6 x 5.3 x 2.8") |
| Weight | 5.9 kg (13 lb) |
| Frequency Range | 5.15 - 5.85 GHz |
| Gain | 19.4 - 20.3 dBi |
| HPOL Beamwidth | 91° (6 dB) |
| VPOL Beamwidth | 85° (6 dB) |
| Electrical Beamwidth | 4° |
| Electrical Downtilt | 2° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 115 N @ 160 km/h (26 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
