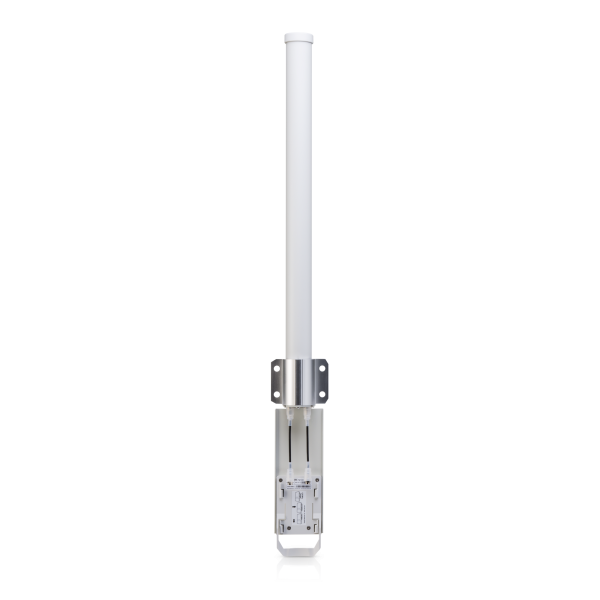

Ubiquiti Dual Omni antenna AirMax MIMO 5GHz, 13dBi, rocket kit
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 107406
- vendor: Ubiquiti
- mnufacturer no.: AMO-5G13
- EAN No.: 810354020995
- weight: 1.85kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
5 GHz, 13 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.
2x2... more
Product information "Ubiquiti Dual Omni antenna AirMax MIMO 5GHz, 13dBi, rocket kit"
5 GHz, 13 dBi carrier-class 2x2 dual-polarity MIMO omnidirectional antenna.
2x2 dual-polarity MIMO
360° coverage
Easy to assemble
Compatible with RocketPrism
Technical Specifications
| AMO-5G13 | |
|---|---|
| Dimensions | 799 x 90 x 65 mm (31.5 x 3.5 x 2.6") |
| Weight | 820 g (1.8 lb) |
| Frequency Range | 5.45 - 5.85 GHz |
| Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max VSWR | 1.5:1 |
| Downtilt | 2° |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 84.52 N @ 200 km/h (19 lbf @ 125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 |
