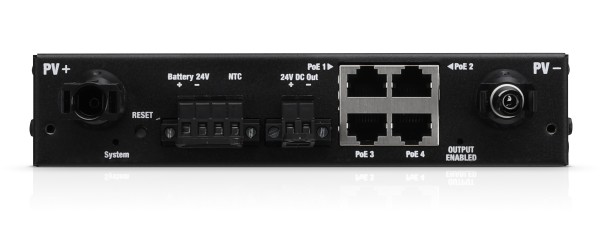

Ubiquiti SunMax Solar Switch SM-SW-40
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 179854
- vendor: Ubiquiti
- mnufacturer no.: SM-SW-40
- EAN No.: 817882026369
- weight: 0.7kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Remotely managed MPPT 24V 7A solar site charging appliance with a built-in, four-port, 24V PoE... more
Product information "Ubiquiti SunMax Solar Switch SM-SW-40"
Remotely managed MPPT 24V 7A solar site charging appliance with a built-in, four-port, 24V PoE switch.
Integrated four-port, 24V PoE, 10/100 MbE switch
24V DC-out terminal with max. output 40W
External 24V battery charging up to 7Amps (supports SLA, AGL,AGM)
Indoor or cabinet (rack-mountable) use
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 168 x 136 x 36 mm (6.14 x 5.35 x 1.42") |
| Weight | 543 g (1.2 lb) |
| Enclosure Characteristics | Steel (Indoor Use) |
| Hardware | |
| Networking Interface | (4) 10/100 Fast Ethernet Ports |
| Management Interface | Ethernet WiFi (2.4 GHz) |
| Button | Reset |
| LEDs | System, Output |
| Power Source | PV Panel (H4 connectors) |
| Max. Power Consumption | 2W |
| PV Input Voltage Range | 10-60V (Reverse Protection, Surge Protection) Maximum Open Circuit Voltage 60V |
| PV Maximum Current | 10A |
| PV Power Control | MPPT |
| Output Interfaces | 24VDC Passive PoE (Pins 4, 5+; 7, 8-) 24VDC Terminal Block |
| Output Voltage | Battery Voltage Limited to 24V (Surge Protection) |
| Maximum Power Output | PoE: 17W, DC OUT: 24W, Max 40W Total |
| Battery Type | 24V SLA, AGM, Gel Lead Battery |
| Absorption Voltage Steps | 27.4V, 28.2V, 29.1V, 30V |
| Float Charge Voltage | 95% of Absorption Voltage |
| Max. Charge Current | 7A |
| Under Voltage Protection | 22 – 23.6V Software Configurable 22V Hardware Protection 2 Priority Levels for Output Disable |
| Operating Temperature* | -20 to 50° C (-4 to 122° F) *Stops charging when limit exceeded and restarts charging with 5° C (9° F) hysteresis. |
| Certifications | FCC, IC, CE |
