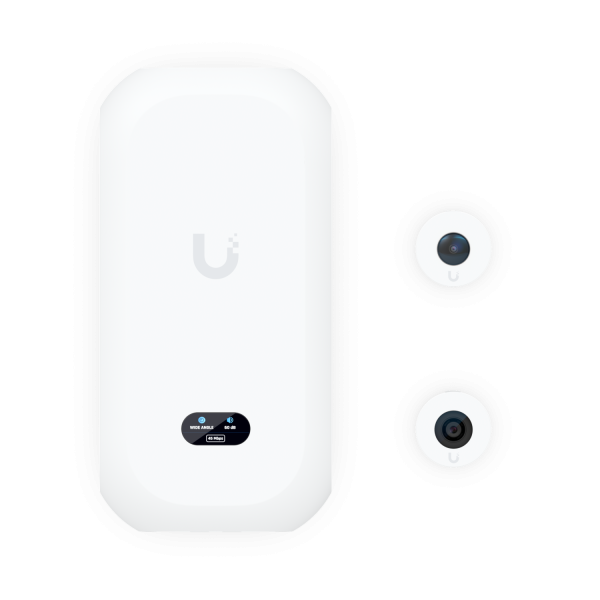

Ubiquiti UniFi Video Camera AI Theta / Indoor / 4K / 24FPS / POE / UVC-AI-Theta
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 217226
- vendor: Ubiquiti
- mnufacturer no.: UVC-AI-Theta
- EAN No.: 810010079701
- weight: 0.4kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
A complete AI Theta system that discreetly secures any space while maintaining a warm and... more
Product information "Ubiquiti UniFi Video Camera AI Theta / Indoor / 4K / 24FPS / POE / UVC-AI-Theta"
A complete AI Theta system that discreetly secures any space while maintaining a warm and inviting atmosphere.
Kit includes (1) AI Theta Hub, (1) Wide-Angle Lens, (1) 360 Lens, and (2) Standard Flush Mounts
4K (9MP) resolution and ultra-wide 360° view with 360 Lens
4K (8MP) video resolution with Wide-Angle Lens
Advanced AI: Detect people, read license plates, and more*
Minimal footprint with lens separated from the camera body
PoE powered hub that connects to lens with included cable
Supports optional AI Theta Audio module for two-way audio
*License plate recognition supported with Long-Distance and Wide-Angle lenses.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) UVC-AI-Theta-Lens/360: Ø22.8. x 43.5 mm (Ø0.9 x 1.7”) |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub Mount: 35 g (1.2 oz) UVC-AI-Theta-Lens/360: 15 g (0.5 oz) UVC-AI-Theta-Lens/360 Flush Mount: 12 g (0.4 oz) |
| Enclosure materials | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate |
| Mount materials | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush Mount: polycarbonate |
| Cable jacket enclosure dimensions | 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3") |
| Cable jacket enclosure material | PVC |
| Cable length | 1 m (3.3 ft) |
| Cable diameter | 3.7 mm (0.15") |
| Cable jacket material | Woven fabric |
| Cable weight | 18 g (0.63 oz) |
| Cable connector type | Theta proprietary |
| Optics | |
| Sensor | UVC-AI-Theta-Lens: 8MP CMOS sensor UVC-AI-Theta-Lens-360: 12MP CMOS sensor |
| Lens | Fixed focal length |
| View angle | UVC-AI-Theta-Lens: H: 97.5°, V: 79.4°, D: 118.2° UVC-AI-Theta-Lens-360: H: 180°, V: 180°, D: 180° |
| Video | |
| Video compression | H.264 |
| Resolution | UVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3) UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1) |
| Max. frame rate | UVC-AI-Theta-Lens: 24 FPS UVC-AI-Theta-Lens-360: 20 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | GbE RJ45 port |
| Max. power consumption | 12.5W |
| Power method | PoE |
| Power supply | 5V DC, 0.5A |
| Supported voltage range | 37—57V DC |
| Output power | 5V DC, 1A per port |
| LED | R/G/B/W |
| Button | Factory reset |
| Mounting | Wall, ceiling mount |
| Operating temperature | -20 to 40° C (-4 to 104o F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | Yes |
| Power supply | 5V DC, 0.9A |
| Software | |
| Web application | UniFi Protect: Version 2.7.18 and later |
| Mobile app | UniFi Protect iOS™ and Android™: Version 1.11.0 and later |
