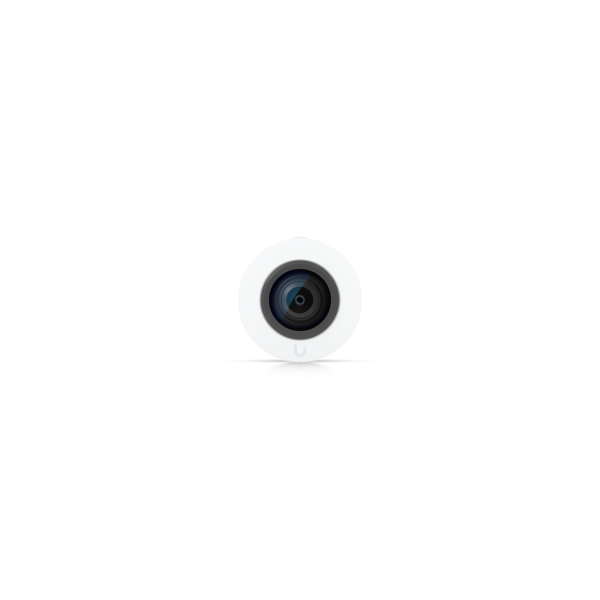

Ubiquiti UniFi UVC-AI-Theta-ProLens360 / 8MP / 53° horizontal / UVC-AI-Theta-ProLens360
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 228577
- vendor: Ubiquiti
- mnufacturer no.: UVC-AI-Theta-ProLens360
- EAN No.: 810084692424
- weight: 0.6kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Ultra-wide 360° view lens with enhanced low-light performance and dynamic range that connects to... more
Product information "Ubiquiti UniFi UVC-AI-Theta-ProLens360 / 8MP / 53° horizontal / UVC-AI-Theta-ProLens360"
Ultra-wide 360° view lens with enhanced low-light performance and dynamic range that connects to an AI Theta Hub.
4K (8MP) resolution with ultra-wide 360° view
Exceptional image quality with superb low-light performance and enhanced dynamic range
Ideal for panoramic coverage of large, busy spaces such as entrances, lobbies, and retail floors
Includes Standard Flush Mount for flat ceiling or wall mounting
Compatible with AI Theta Pro Mounts
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø36.6 x 58.9 mm (Ø1.4 x 2.3”) |
| Weight | 58 g (2 oz) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mounting material | Polycarbonate |
| Weatherproofing | Indoor only |
| Optics | |
| Sensor | 8MP 1/1.8" |
| Lens | Fixed focal length |
| View angle | H: 180°, V: 180°, D: 180° |
| Video | |
| Video compression | H.264 |
| Resolution | 4MP 2160 x 2160 (1:1) |
| Max. frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power method | Theta proprietary |
| Power supply | 5V DC, 0.5A |
| Max. power consumption | 2.5W |
| Mounting | Wall, ceiling mount (Included) Flush mount (Sold separately) |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
