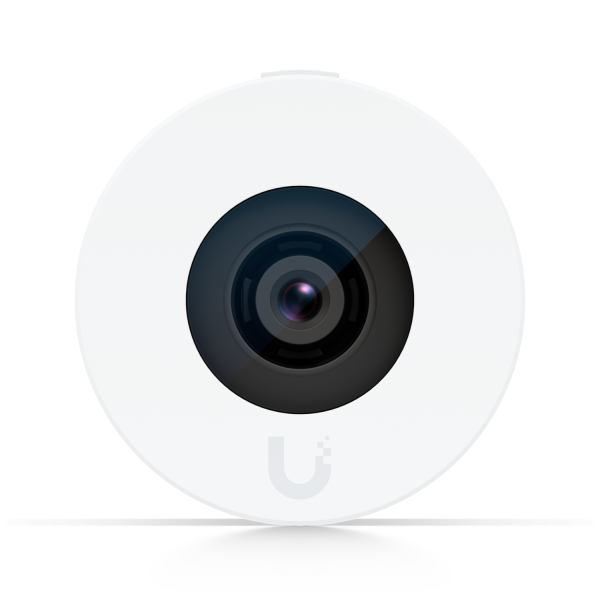

Ubiquiti UniFi AI Theta Long-Distance Lens / 4K / 36.2° horizontal /UVC-AI-Theta-Lens-LD
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 228583
- vendor: Ubiquiti
- mnufacturer no.: UVC-AI-Theta-Lens-LD
- EAN No.: 810084692370
- weight: 0.015kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Long-distance lens that connects to an AI Theta Hub.
4K (8MP) video resolution
36.2°... more
Product information "Ubiquiti UniFi AI Theta Long-Distance Lens / 4K / 36.2° horizontal /UVC-AI-Theta-Lens-LD"
Long-distance lens that connects to an AI Theta Hub.
4K (8MP) video resolution
36.2° horizontal field of view
Ideal for capturing detail to secure business critical spaces such as retail point of sale
Includes Standard Flush Mount for flat ceiling or wall mounting
Compatible with AI Theta Angle Mount for flexible ceiling or wall mounting
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø22.8. x 43.5 mm (Ø0.9 x 1.7”) |
| Weight | 15 g (0.5 oz) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Polycarbonate |
| Weatherproofing | Indoor only |
| Optics | |
| Sensor | 8MP CMOS |
| Lens | Fixed focal length |
| View angle | H: 36.2°, V: 27.7°, D: 44.4° |
| Video | |
| Video compression | H.264 |
| Resolution | 8MP 3264 x 2448 (4:3) |
| Max. frame rate | 24 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Power method | Theta proprietary |
| Power supply | 5V DC, 0.5A |
| Max. power consumption | 2.5W |
| Mounting | Wall, ceiling mount (Included) Angle mount (Sold separately) |
| Ambient operating temperature | -20 to 40° C (-4 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
