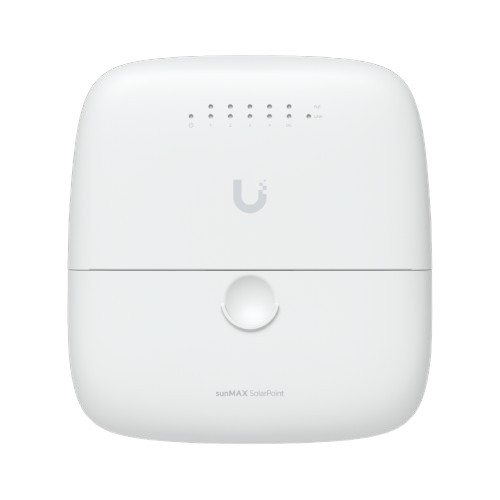

Ubiquiti Solar Switch SM-SP-40 SunMax
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 179855
- vendor: Ubiquiti
- mnufacturer no.: SM-SP-40
- EAN No.: 817882026352
- weight: 0.87kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Remotely managed MPPT 24V 7A solar site charging appliance.
Integrated four-port, 24V PoE,... more
Product information "Ubiquiti Solar Switch SM-SP-40 SunMax"
Remotely managed MPPT 24V 7A solar site charging appliance.
Integrated four-port, 24V PoE, 10/100 Mbps switch
24V DC-out terminal with max. output 40W
External 24V battery charging up to 7A (supports SLA, AGL, AGM)
Weather prediction service
Indoor and outdoor use
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 202 x 190 x 50 mm (8 x 7.5 x 2") |
| Weight | 650 g (1.4 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Pole mount diameter | 35 to 60 mm (1.4 to 2.4") on pipe outer diameter |
| Weatherproofing | IPX4 |
| Hardware | |
| Networking interface | (4) 10/100 MbE fast ports |
| Management interface | Ethernet WiFi |
| Power method | PV panel (H4 connectors) |
| Max. power consumption | 2W |
| Supported voltage range | 10–60V (Reverse protection, surge protection) Max. open circuit voltage: 60V |
| LEDs | System, output |
| Button | Factory reset |
| Operating temperature* | -20 to 50° C (-4 to 122° F) |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | AP |
| Security | WPA2-AES |
| Services | UISP, SNMP, NTP client, timezone, weather prediction service |
| Tools | Discovery, ping, traceroute over UISP app |
| Application requirements | UISP: Version 2.0.0 and later |
