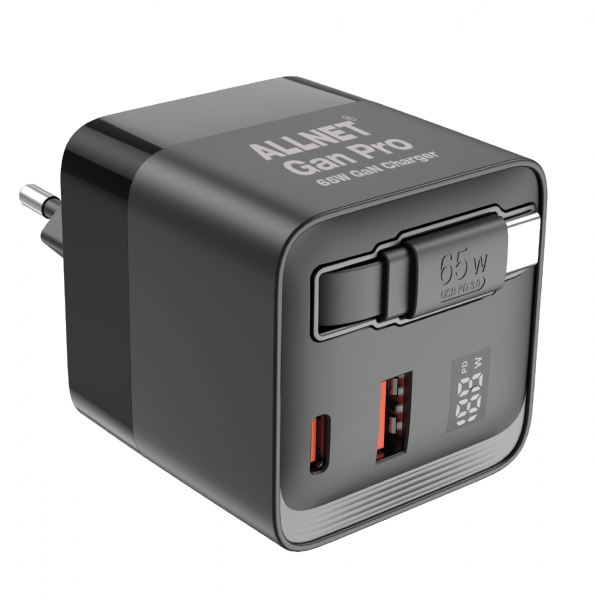

ALLNET replacement power supply QC USB-C PD GaN power supply Power Supply 65 Watt 1x USB Type-A QC, 1x USB Type-C/ 1x USB Type-C retractable **EU PLUG** black

ALLNET GaN USB-C PD power supply 65W – Compact, intelligent & versatile

Product description:
ALLNET replacement power supply 65W GaN Power Supply with 2× USB-C (incl. retractable cable) + 1× USB-A QC 3.0 | EU plug | black

Highlights at a glance

• 65?W total power for fast and simultaneous charging

• 2× USB-C (of which 1× with magnetic, retractable cable)

• 1× USB-A with Qualcomm® QuickCharge™ 3.0

• Compact design thanks to modern GaN technology

• Integrated protection mechanisms for maximum safety

• Fireproof PC+ABS housing

Efficient GaN technology – More power in a small space

With gallium nitride (GaN) as the semiconductor material, this power supply unit achieves exceptionally high efficiency in a compact design. GaN generates significantly less heat than conventional silicon solutions - which enables smaller dimensions, greater safety and faster charging processes.

Smart fast charging with PD 3.0 & QC 3.0

• Power Delivery (PD) – intelligently recognises the requirements of the connected device and delivers the exact voltage and amperage required – ideal for laptops, tablets, smartphones and more.

• QuickCharge™ 3.0 (QC) – optimises the charging process for compatible devices üvia the USB-A port for particularly fast results.

Technical data

Input:

• AC 100–240 V ~ 50/60 Hz, 1.7 A max.

Outputs (individual connections):

• USB-C1 / USB-C2 (PD 3.0):
  5–11 V / 4.5 A | 5 V/3 A | 9 V/3 A | 12 V/3 A | 15 V/3 A | 20 V/3.25 A (up to 65W)

• USB-A (QC 3.0):
  5 V/3 A | 9 V/3 A | 12 V/3 A | 20 V/3 A (up to 60W)

Combination outputs:

• USB-C1 + USB-C2: 45W + 20?W

• USB-C1 + USB-A: 45W + 18W

• USB-C2 + USB-A: 5V/3A (max. 15W)

• USB-C1 + USB-C2 + USB-A: 45W + 15W (total max. 60W)

• Total power: 65W (max.)

Safe & robust – with integrated protection system

• Short-circuit, overcurrent, overvoltage and overtemperature protection

• Housing material: Fireproof PC+ABS

• Dimensions: 58.5 × 50 × 50 mm

• Weight: 157 g

• Extendable USB-C cable with magnetic plug: approx. 80 cm

Application areas

Perfectly suitable for:

• Smartphones, tablets, e-readers

• Notebooks, ultrabooks, netbooks

• Raspberry Pi 4, Rock Pi & other SBCs

• Power banks, docking stations & USB-C accessories

Tip for optimum performance

Use a high-quality USB-C cable with integrated PD chip to achieve maximum charging performance. The ALLNET cables support up to 40 Gbit/s (USB4.0 / Thunderbolt 4) and 100W charging power (20V/5A) – for uncompromising performance and safety.
