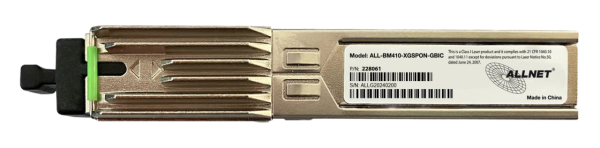

ALLNET ISP Bridge Modem XGSPON GBIC "ALL-BM410-XGSPON-GBIC"

Preview: ALLNET ISP Bridge Modem XGSPON GBIC "ALL-BM410-XGSPON-GBIC"

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 228061
vendor: ALLNET
mnufacturer no.: ALL-BM410-XGSPON-GBIC
EAN No.: 4038816228062
weight: 0.06kg
warranty: 24 months
Do you have any questions concerning this product?

Highlight: The ALL-BM410-XGSPON-GBIC ONT is delivered with one SFP+ (Small Form-factor... more

Close menu

Product information "ALLNET ISP Bridge Modem XGSPON GBIC "ALL-BM410-XGSPON-GBIC""

Highlight:

The ALL-BM410-XGSPON-GBIC ONT is delivered with one SFP+ (Small Form-factor Pluggable) based 10G Base-X Gigabit Ethernet data interface, supporting:

Built-in layer-2 switching
Advanced data features such as VLAN tag manipulation, classification, and filtering
The ALL-BM410XGSPON-GBIC is also certified by Swisscom.

To extend the 10GPON deployment in existing access network for business and residential subscribers, XGS PON ONT SFP ALL-BM410-XGSPON-GBIC is a standard SFP+ form factor, which can easily replace the Ethernet SFP+ module existing in Ethernet gateway, switch, router or backhaul equipment etc.

The ALL-BM410XGSPON-GBIC is also certified by Swisscom.

Equipped with ITU-T G.9807 compliant XGS-PON interface, ALL-BM410-XGSPON-GBIC incorporates interoperability, key customers’ specific requirements and cost-efficiency. By integrating XGS PON MAC and standard compliant OMCI stack, ALL-BM410-XGSPON-GBIC provides all XGS PON functionalities and full range FCAPS management features including supervision, monitoring and maintenance

Technical Details:

Installation	SFP+ Interface
PON Interface	Compliant with ITU-T G.9807 XGS-PON standards SFF type laser, SC/APC connector 10G bps Burst Mode Upstream Transmitter 10G bps Downstream Receiver Compliant with ITU-T G.9807 Class N1 APD receiver and DFB transmitter 4~+9dBm launch power, -28dBm sensitivity, and -9dBm overload Wavelengths: US 1260nm to 1280nm, DS 1575nm to 1580nm Laser compliant with FCC 47 CFR Part 15, Class B, and FDA 21 CFR 1040.10 and 1040.11, Class I, ONT support Class C or Class C+ optics as an option
PON QoS	Multiple T-CONTs per device Multiple GEM Ports per device Flexible mapping between GEM Ports and T- CONT Activation with automatic discovered SN and password in conformance with ITU-T G.984.3 AES-128 Decryption with key generation and switching FEC (Forward Error Correction) DBA reporting by piggyback reports in the DBRu (mode 0) 802.1p mapper service profile on U/S Mapping of GEM Ports into a T-CONT with priority queues based scheduling Support Multicast GEM port and incident broadcast GEM port.
Ethernet Interface	SFP+ based 10GBase-X GbE interface Hardware priority queues on the downstream direction in support of CoS 802.1D bridging Virtual switch based on 802.1q VLAN VLAN tagging/detagging VLAN stacking (Q-in-Q) and VLAN Translation IP ToS/DSCP to 802.1p mapping Class of Service based on VLAN-ID, 802.1p bit, ToS/DSCP Marking/remarking of 802.1p Broadcast/Multicast rate limiting
OAM	Standard compliant OMCI (the embedded operations channel) interface as defined by ITU-T G.988 Alarming and AVC report, performance monitoring Remotely software image download over OMCI, as well as activation and rebooting Hold two software sets with software image integrity checking and automatic rollback
Power Supply	Power Consumption: < 2.8W
Dimensions	87.5 mm x 15.6 mm x 13.75 mm (L x W x D)
Working Environment	case operating temperature: -40~+85 °C Humidity: 5 ~ 95% relative humidity, non- condensed
Safety & EMI	CE compliant FCC/UL compliant
