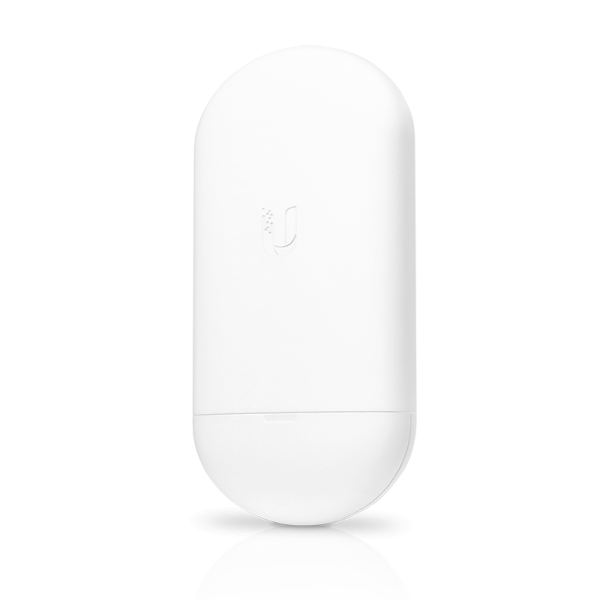

Ubiquiti airMAX NanoStation 5AC Lok
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 178400
- vendor: Ubiquiti
- mnufacturer no.: Loco5AC-5
- EAN No.: 817882027267
- weight: 1.408kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC... more
Product information "Ubiquiti airMAX NanoStation 5AC Lok"
Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.
5 GHz, 10+ km link range
450+ Mbps throughput
Dedicated spectral analysis radio
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
| Weight | 0.18 kg (6.35 oz) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mounting kit (Included) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 0.3A Gigabit PoE supply* *PoE adapter not included. |
| Supported voltage range | 24V ±10% |
| Max. power consumption | 7W |
| LEDs | Power, Ethernet, (4) signal strength |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 13 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol isolation | 20 dB min. |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
