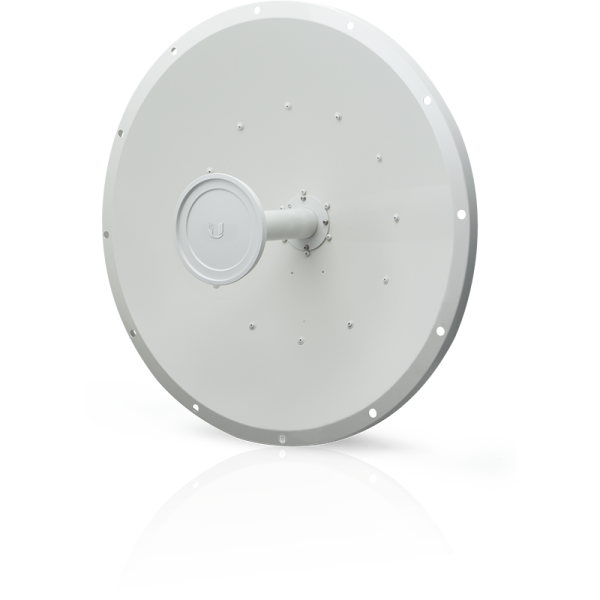

Ubiquiti RocketDish 30dBi, 5GHz, Rocket Kit
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 107367
- vendor: Ubiquiti
- mnufacturer no.: RD-5G30
- EAN No.: 810354021282
- weight: 9.49kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
5 GHz, 30 dBi or 34 dBi high-performance dish antenna.
2x2 dual-polarity performance... more
Product information "Ubiquiti RocketDish 30dBi, 5GHz, Rocket Kit"
5 GHz, 30 dBi or 34 dBi high-performance dish antenna.
2x2 dual-polarity performance
Robust mechanical design for outdoor application use
Included radome and metal shroud
Compatible with Rocket Prism 5AC, Rocket M5
Technical Specifications
| RD-5G34 | |
|---|---|
| Dimensions | 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57") |
| Weight | 13.5 kg (29.76 lb) |
| Frequency Range | 4.9 - 5.8 GHz |
| Gain | 4.9 GHz: 30 dBi 5 - 5.8 GHz: 34 dBi |
| HPOL Beamwidth | 3° (3 dB) |
| VPOL Beamwidth | 3° (3 dB) |
| F/B Ratio | 42 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 1,779 N @ 200 km/h (400 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
| RD-5G30 | |
| Dimensions | 650 x 650 x 304 mm (25.6 x 25.6 x 11.97") |
| Weight | 9.8 kg (21.61 lb) |
| Frequency Range | 4.9 - 5.8 GHz |
| Gain | 4.9 GHz: 26 dBi 5 - 5.9 GHz: 30 dBi |
| HPOL Beamwidth | 5° (3 dB) |
| VPOL Beamwidth | 5° (3 dB) |
| F/B Ratio | 34 dB |
| Max. VSWR | 1.4:1 |
| Wind Loading | 787 N @ 200 km/h (177 lbf @125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
