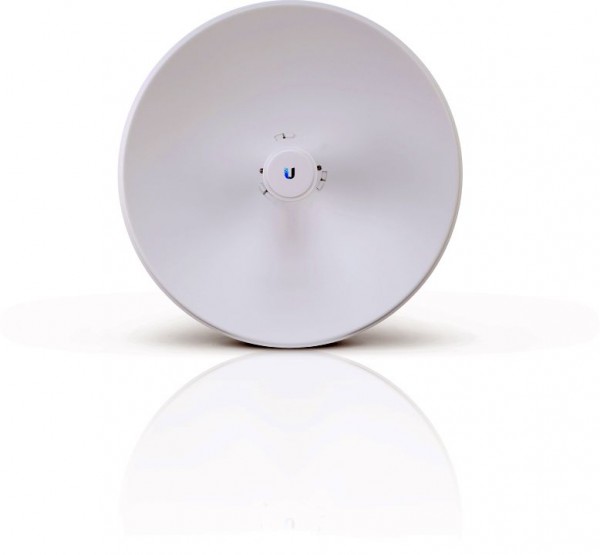

Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 140010
- vendor: Ubiquiti
- mnufacturer no.: PBE-5AC-GEN2
- weight: 4.43kg
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector. Provides up... more
Product information "Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE"
High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector. Provides up to 450+ Mbps data throughput.
5 GHz, 15+ km link range
450+ Mbps throughput
Improved mounting
Dedicated spectral analysis radio
Dedicated WiFi management radio
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 230mm (16.54 x 16.54 x 9.06") |
| Weight | 2.22 kg (4.89 lb) |
| Enclosure materials | UV-stabilized plastic, powder-coated SPCC |
| Wind loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mounting | Pole mount kit (Included) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. power consumption | 8.5W |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported voltage range | 20—26V DC |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| RoHS compliance | Yes |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Operating temperature | -40 to 70 C (-40 to 158 F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 25 dBi |
| Channel sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
