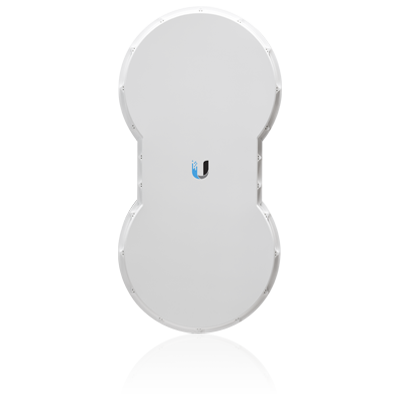

Ubiquiti AirFiber, AF-5U 1Gbps+ Backhaul, 5.7-6.2GHz P2P Richtfunk
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 111075
- vendor: Ubiquiti
- mnufacturer no.: AF-5U
- EAN No.: 810354022081
- weight: 24.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate.
5 GHz,... more
Product information "Ubiquiti AirFiber, AF-5U 1Gbps+ Backhaul, 5.7-6.2GHz P2P Richtfunk"
Compact, wireless point-to-point high-band bridge with a 1.2+ Gbps throughput rate.
5 GHz, high-band 100+ km link range
1.2+ Gbps throughput
Separate integrated TX and RX antennas
Integrated GPS sync
1+ Mpps processing
Note. This product should be purchased in pairs in order to form links.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08" |
| Weight | 16 kg (35.27 lb) |
| Mounting | Pole mount kit (Included) |
| Wind Loading | 863 N @ 200 km/h (194 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Auxiliary Port | (1) RJ-12, alignment tone port |
| Power method | Passive PoE |
| Power supply | 50V, 1.2A PoE GigE adapter (Included) |
| Supported voltage range | 42—58V DC |
| Max. power consumption | 40 W |
| Operating temperature | -40 to 55°C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| System | |
| Max. throughput | 1.2+ Gbps |
| Max. range* | 100+ km *Dependent on regulatory region. |
| Packets per second | 1+ million |
| Encryption | 128-Bit AES |
| Uplink/Downlink Ratio | 50% Fixed |
| Radio Frame Synchronization | GPS |
| RF | |
| Operating frequency | 5725 - 5850 MHz (FCC 15.247, IC RSS-210) 5725 - 5875 MHz (ETSI EN 302 502) 5725 - 6200 MHz (Other Regions) |
| GPS | GPS Clock Synchronization |
| EIRP | ~50 dBm *Dependent on regulatory region and frequency band. |
| Frequency accuracy | ±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization |
| Channel bandwidth | 10/20/30/40/50 MHz |
| Modulation | 1024QAM MIMO 256QAM MIMO 64QAM MIMO 16QAM MIMO QPSK MIMO ½ Rate QPSK xRT ¼ Rate QPSK xRT |
| Gain TX RX |
23 dBi 23 dBi |
| Beamwidth | 6° |
| Front-to-back ratio | 70 dB |
| Polarization | Dual-slant |
| Cross-polarity isolation | > 28 dB |
| LEDs | |
| System | (12) Status LEDs: Data port pink/activity Data port speed Management port link/activity Management port speed GPS synchronization Master/slave Link status Modulation mode 0.25x to 4x, 6x, 8x, 10x (unlabelled), overload Remote and local displays (Calibrated signal strength) |
