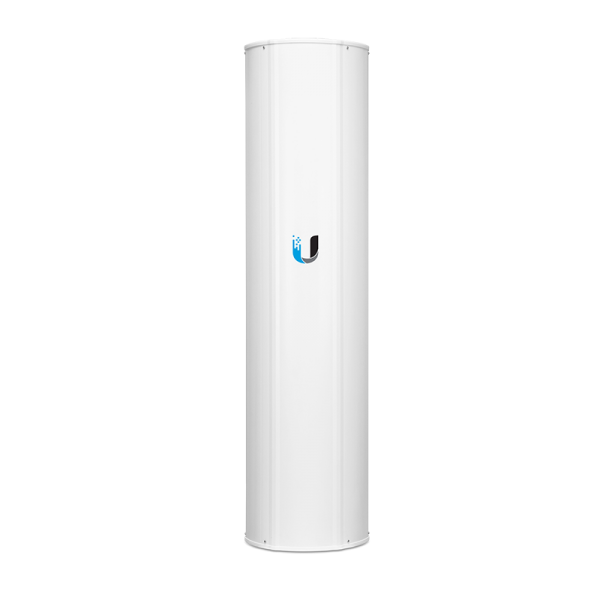

Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD

Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD
Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD
Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD
Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD


Preview: Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD Preview: Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD Preview: Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD Preview: Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD
product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us
Description
Description
5 GHz, 22 dBi sector antenna for Point-to-MultiPoint (PtMP) applications. Powerful... more
Close menu
Product information "Ubiquiti 5 GHz airPrism Sector Antenna, 90°, High Density, AP-5AC-90-HD"

5 GHz, 22 dBi sector antenna for Point-to-MultiPoint (PtMP) applications.

Powerful performance for high-density areas

Efficient footprint for reduced tower costs

Compatible with Rocket Prism 5AC

Technical Specifications

AP-5AC-90-HD
Dimensions With Mount: 322.6 x 201.5 x 1300 mm (12.7 x 7.93 x 51.18")
Weight With Mount: 13.1 kg (28.9 lb)
Frequency Range 5.15 - 5.85 GHz
Gain 22 dBi
HPOL Beamwidth 3 x 30° (6 dB)
VPOL Beamwidth 3 x 30° (6 dB)
Elevation Beamwidth 8°
Electrical Downtilt 2°
Polarization Dual-Linear
Max. VSWR 1.75:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 534 N @ 200 km/h (120 lbf @ 125 mph)
Interfaces (6) RP-SMA Connectors (Weatherproof)
Compatible Radio Rocket5ac Prism
Mounting Pole Mount (Kit Included)
ETSI Specification EN 302 326 DN2
Certifications CE, FCC, IC
