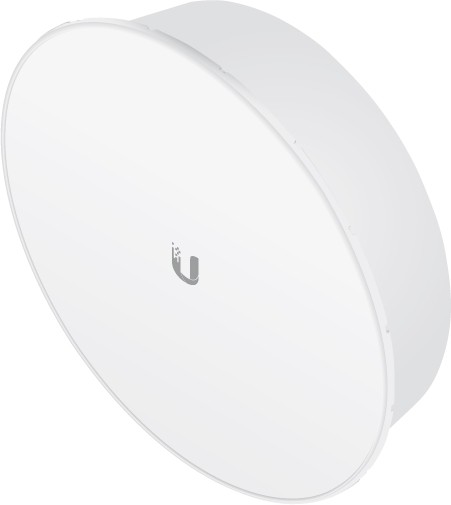

Ubiquiti airMAX PowerBeam M5 300 ISO
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 123021
- vendor: Ubiquiti
- mnufacturer no.: PBE-M5-300-ISO
- EAN No.: 810354023804
- weight: 3.354kg
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
5 GHz, 22 dBi bridge with 300 mm RF isolated reflector and 150+ Mbps throughput.
5 GHz,... more
Product information "Ubiquiti airMAX PowerBeam M5 300 ISO"
5 GHz, 22 dBi bridge with 300 mm RF isolated reflector and 150+ Mbps throughput.
5 GHz, 20+ km link range
150+ Mbps throughput
Isolation antenna design rejects RF noise
Improved mounting
Technical Specifications
| PBE-M5-300-ISO | |
|---|---|
| Dimensions | 364 x 364 x 276 mm (14.33 x 14.33 x 10.87") |
| Weight | 2.55 kg (5.62 lb) |
| Power Supply | 24V, 0.5A PoE |
| Max. Power Consumption | 6W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20-26VDC |
| Operating Frequency | Worldwide: 5170 - 5875 MHz US: 5725 - 5850 MHz |
| Gain | 22 dBi |
| Networking Interface | (1) 10/100 Ethernet Port |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Channel Sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount Kit Included |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Non-Condensing |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
