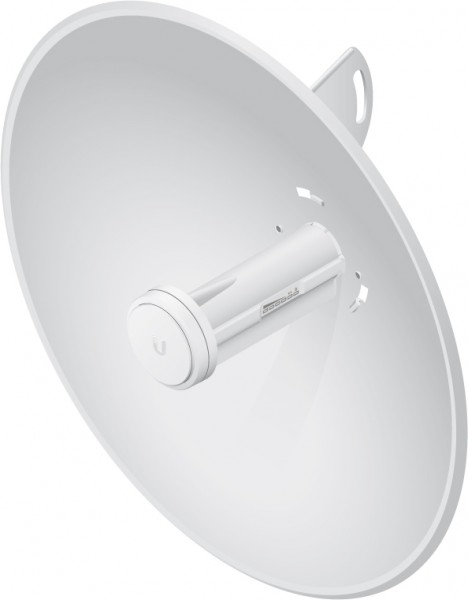

Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE

Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Description Accessories 4
Description
5 GHz, 25 dBi bridge with 150+ Mbps throughput. 5 GHz, 25+ km link range 150+ Mbps... more
Close menu
Product information "Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE"

5 GHz, 25 dBi bridge with 150+ Mbps throughput.

5 GHz, 25+ km link range

150+ Mbps throughput

Improved mounting

Technical Specifications

Mechanical
Dimensions 420 x 420 x 275 mm (16.54 x 16.54 x 10.83")
Weight 1.75 kg (4.8 lb)
Enclosure material UV-stabilized plastic
Mounting Pole mount kit (Included)
Wind survivability 200 km/h (125 mph)
Wind loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption 8W
Max. TX power 26 dBm
Gain 25 dBi
ESD/EMP protection Air/contact: ± 24 kV
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-adjustable to correspond to custom RSSI levels
RoHS compliance Yes
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 22 dBi
Channel sizes 5/8/10/20/30/40 MHz
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5170 - 5875 MHz
US/CA 5725 - 5850 MHz
