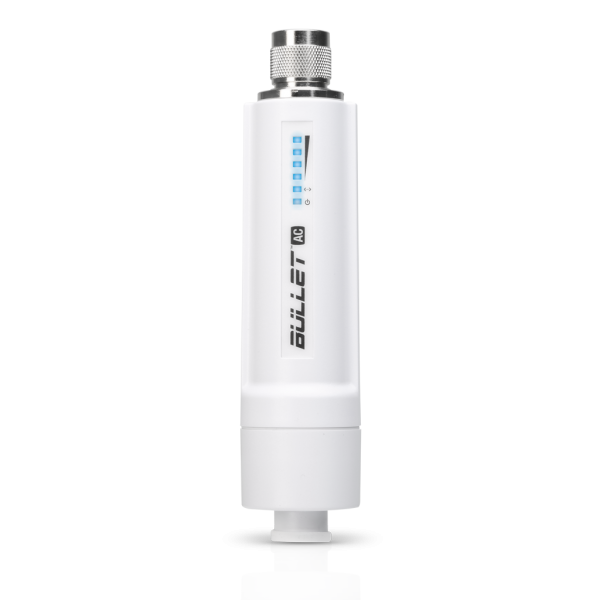

Ubiquiti Bullet AC, Dual-Band, AC, B-DB-AC

Preview: Ubiquiti Bullet AC, Dual-Band, AC, B-DB-AC

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

EU RoHS und REACH Erklärung

stock: 0
part no.: 148952
vendor: Ubiquiti
mnufacturer no.: B-DB-AC
EAN No.: 817882021319
weight: 0.179kg
warranty: 12 months
Do you have any questions concerning this product?

Description Accessories 18

Description

Portable, dual-band WiFi radio powered with Gigabit PoE and compatible with the UISP... more

Close menu

Product information "Ubiquiti Bullet AC, Dual-Band, AC, B-DB-AC"

Portable, dual-band WiFi radio powered with Gigabit PoE and compatible with the UISP application.

Covers both 2.4 and 5 GHz bands

300+ Mbps throughput*

Plug-and-play integration with airMAX antennas

_{*Only at 5 GHz frequency band.}

Technical Specifications

Mechanical
Dimensions	190 x 46 mm (7.48 x 1.81")
Weight	116 g (4.09 oz)
Enclosure manterial	Polycarbonate
Hardware
Networking interface	(1) GbE RJ45 port
Power method	24V passive PoE (pairs 4, 5+; 7, 8 return)
Power supply	24V DC, 0.3A (minimum)
Max. power consumption	7W
Output power	22 dBm
Throughput 2.4 GHz 5 GHz	160+ Mbps 300+ Mbps
ESD/EMP protection	Air/contact ± 24 kV
Antenna connector	N-type connector
LEDs	Power, Ethernet, ?(4) signal strength
Shock and Vibration	ETSI300-019-1.4
Operating temperature	-40 to 70° C (-40 to 158° F)
Operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Operating Frequency (MHz)
US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3	2400 - 2483.5 MHz 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz
Worldwide	2400 - 2483.5 MHz 5150 - 5875 MHz
