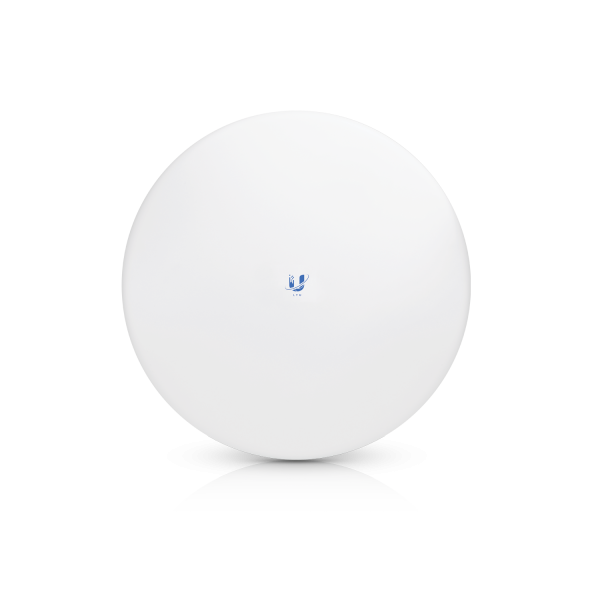

Ubiquiti LTU-PRO-EU P2MP 5GHz Ltu Client Radio
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 183225
- vendor: Ubiquiti
- mnufacturer no.: LTU-Pro
- EAN No.: 817882029247
- weight: 2.65kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
5 GHz PtMP LTU Client with advanced RF performance, functions in a PtMP environment with the... more
Product information "Ubiquiti LTU-PRO-EU P2MP 5GHz Ltu Client Radio"
5 GHz PtMP LTU Client with advanced RF performance, functions in a PtMP environment with the LTU-Rocket as the BaseStation.
5 GHz, 25+ km link range
900+ Mbps throughput*
Dedicated spectral analysis radio
Integrated radome
Note. Compatible with LTU devices only.
*FW version 2.3.0 and later.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86") |
| Weight | 1.3 kg (2.87 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Mounting | Pole mount (Kit included) |
| Wind loading | 150 N at 200 km/h (33.72 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | 24V Passive PoE (Pairs 4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported voltage range | 22–26V DC |
| Max. power consumption | 9W |
| ESD/EMP protection | Air/contact: ± 24kV |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 EU Worldwide |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 2400 - 2483.5 MHz 5150 - 5875 MHz 2400 - 2483.5 MHz 4800 - 6200 MHz *Depends on regulatory region. |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 24 dBi |
| Beamwidth | 14° |
| Sidelobe level | -10 dB |
| Front-to-back ratio |
27 dB |
