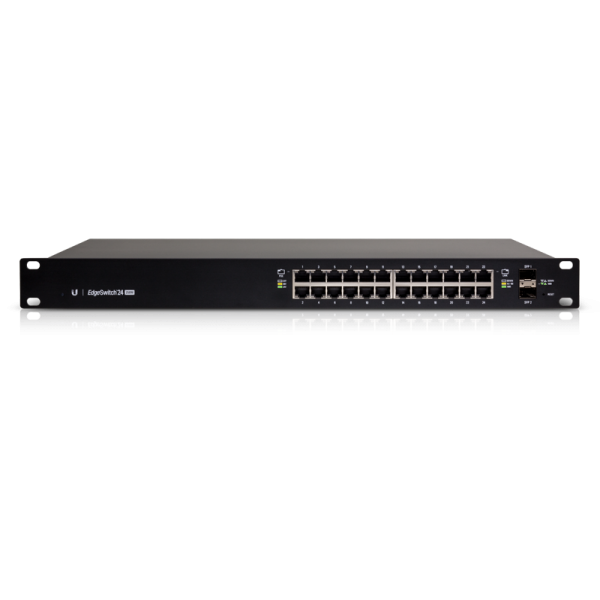

Ubiquiti EdgeSwitch 24 / 24 Gigabit RJ45 Ports / 2 SFP Ports / 250W / PoE+ / ES-24-250W
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 113210
- vendor: Ubiquiti
- mnufacturer no.: ES-24-250W
- EAN No.: 8103540222412
- weight: 5.7kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Layer 2/3, PoE switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 250W power supply.... more
Product information "Ubiquiti EdgeSwitch 24 / 24 Gigabit RJ45 Ports / 2 SFP Ports / 250W / PoE+ / ES-24-250W"
Layer 2/3, PoE switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 250W power supply.
(24) GbE RJ45 ports
(2) SFP ports
250W total PoE availability
Rack-mountable, 1U
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") |
| Weight | 4.7 kg (10.4 lb) |
| Hardware | |
| Networking Interfaces | (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
| Management Interface | (1) RJ45 Serial Port, Ethernet In/Out Band |
| Total Non-Blocking Throughput | 26 Gbps |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Max. Power Consumption Includes PoE Output Excludes PoE Output |
250W 30W |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 250W DC |
| LEDs Per Port RJ45 Data Ports SFP+/SFP Data Ports |
PoE, Speed/Link/Activity Speed/Link/Activity |
| Rackmount | Yes, 1U High |
| ESD/EMP Protection | Air: ±24 kV, Contact: ±24 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE Per Port | |
| PoE Interfaces | PoE/PoE+ (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-) |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range PoE+ Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
